Description

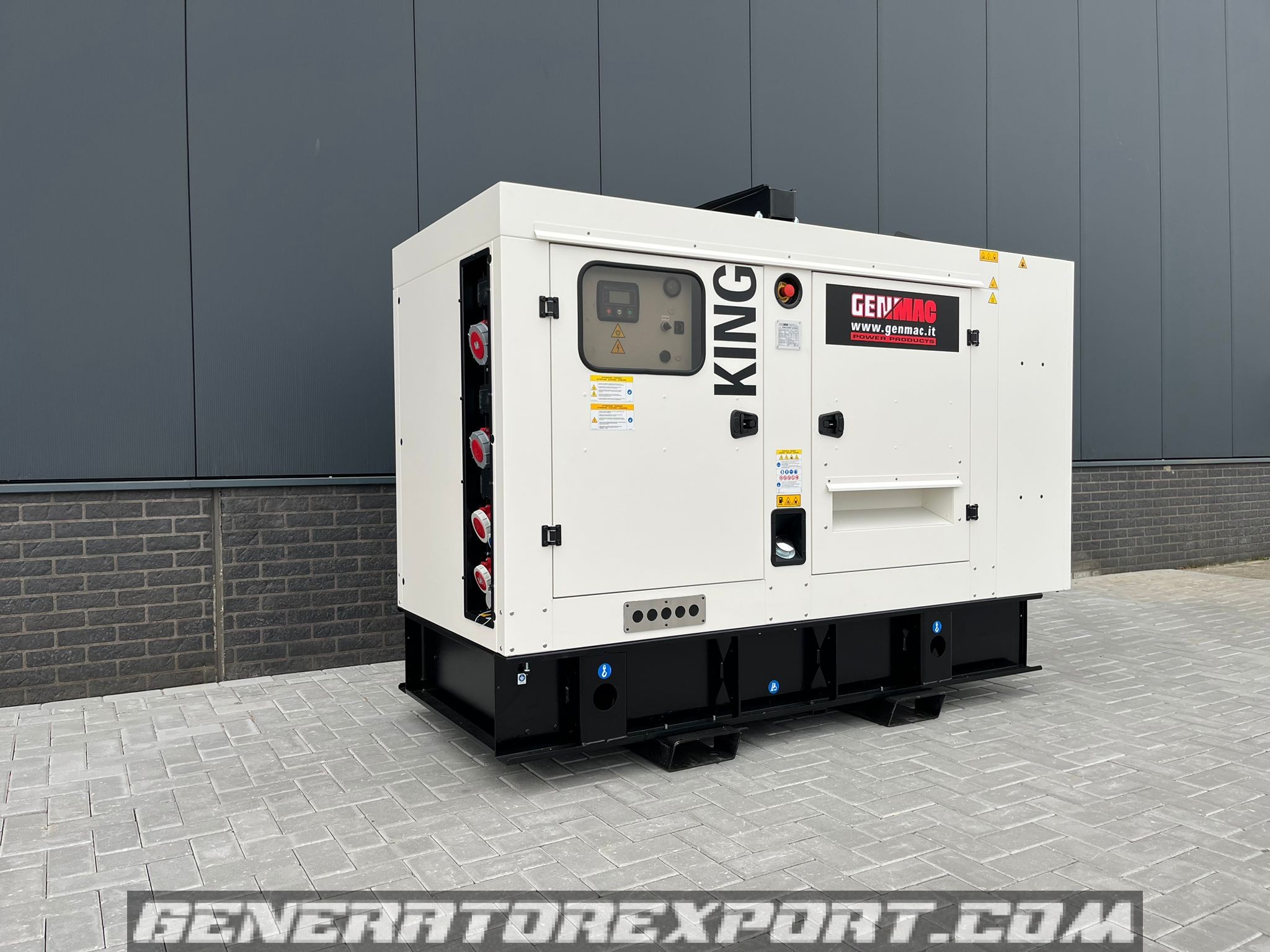

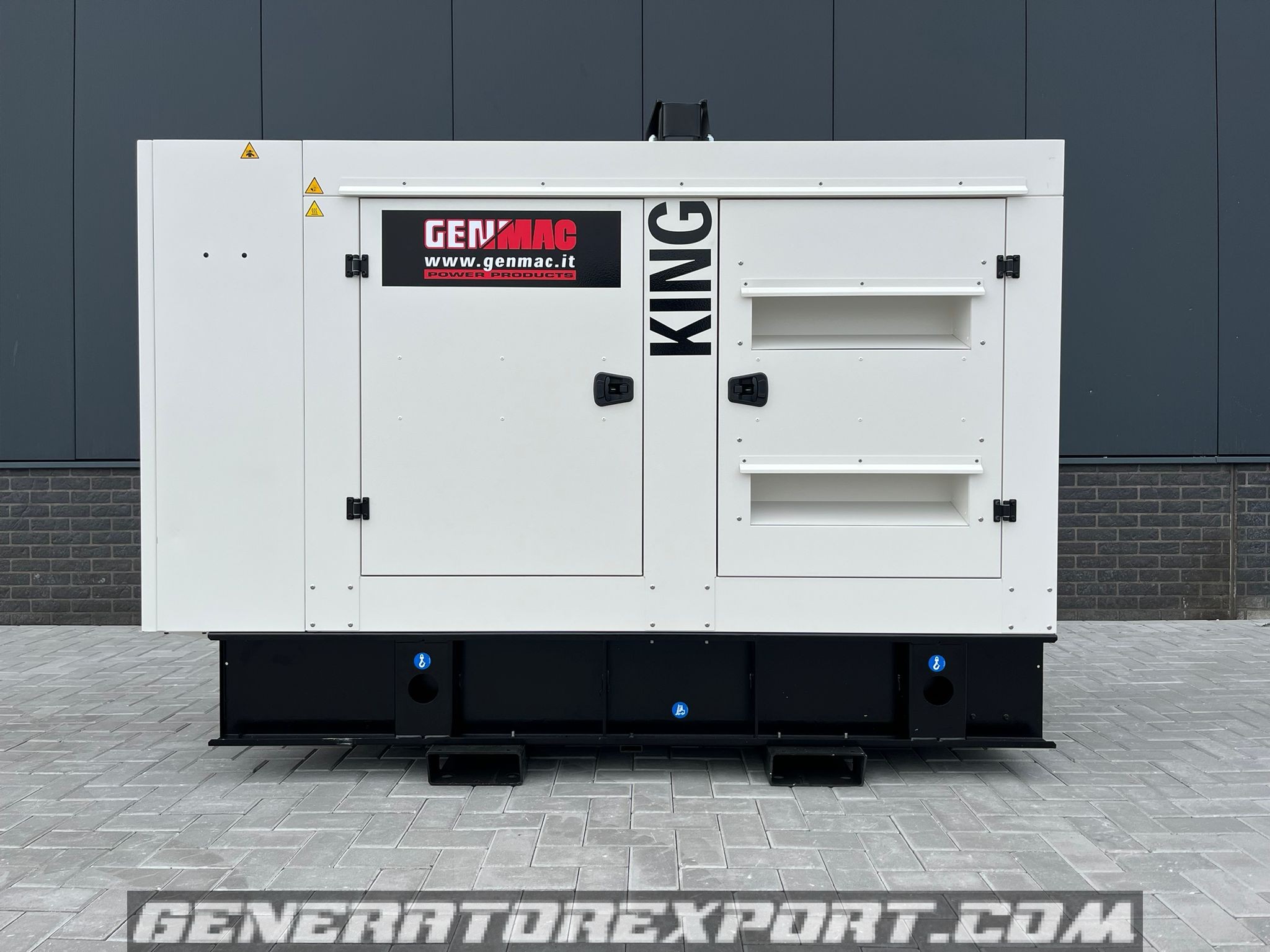

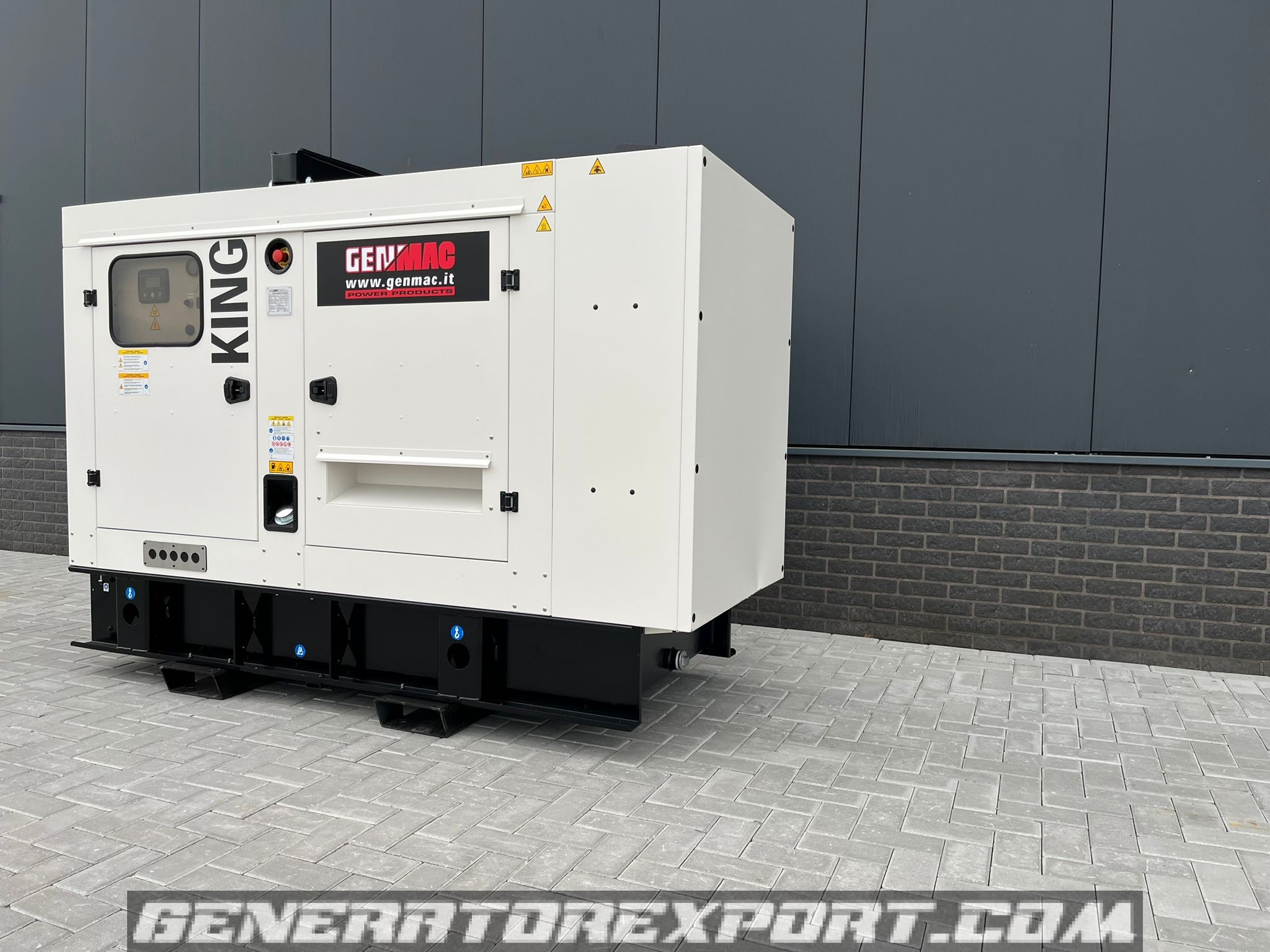

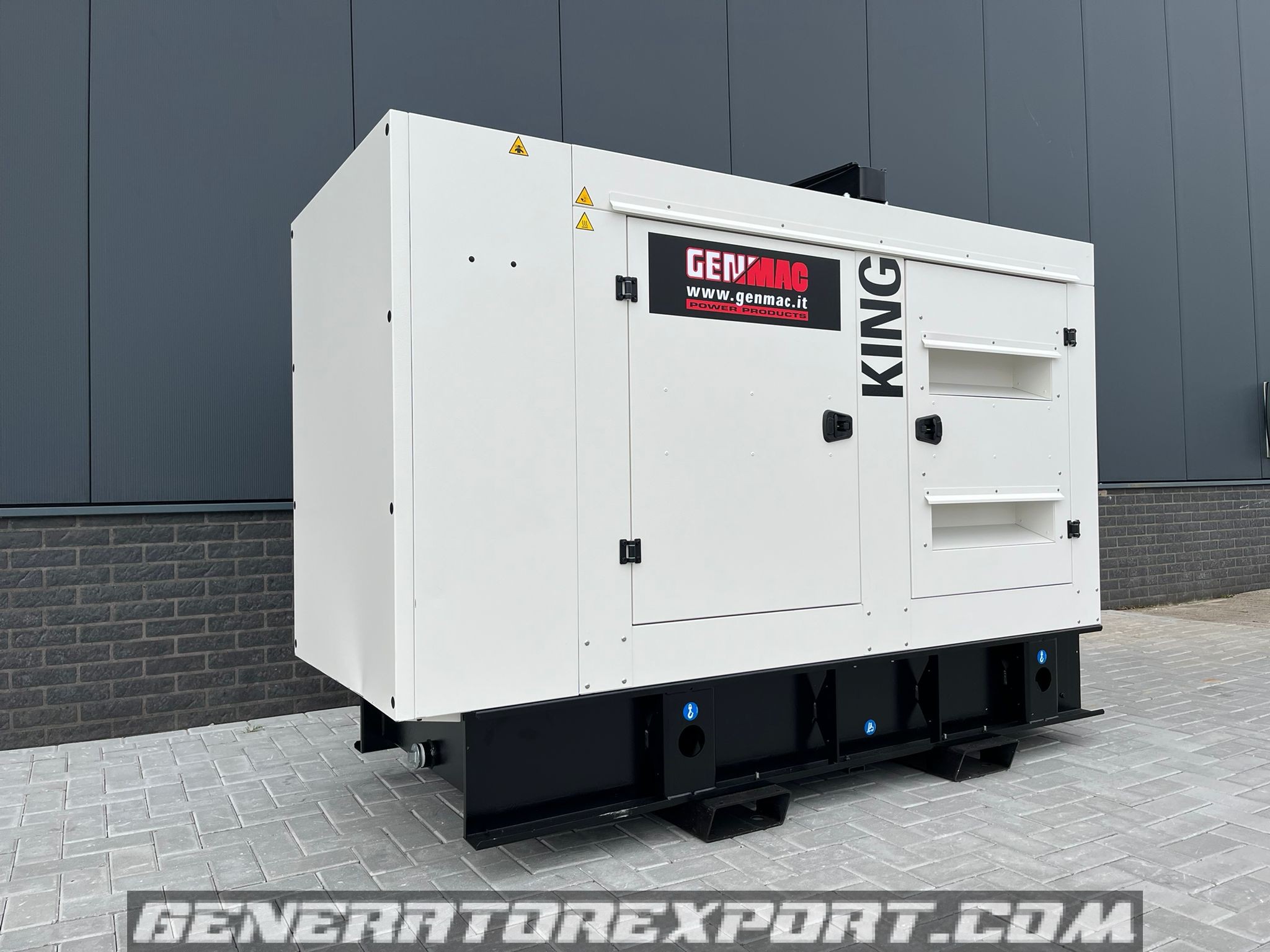

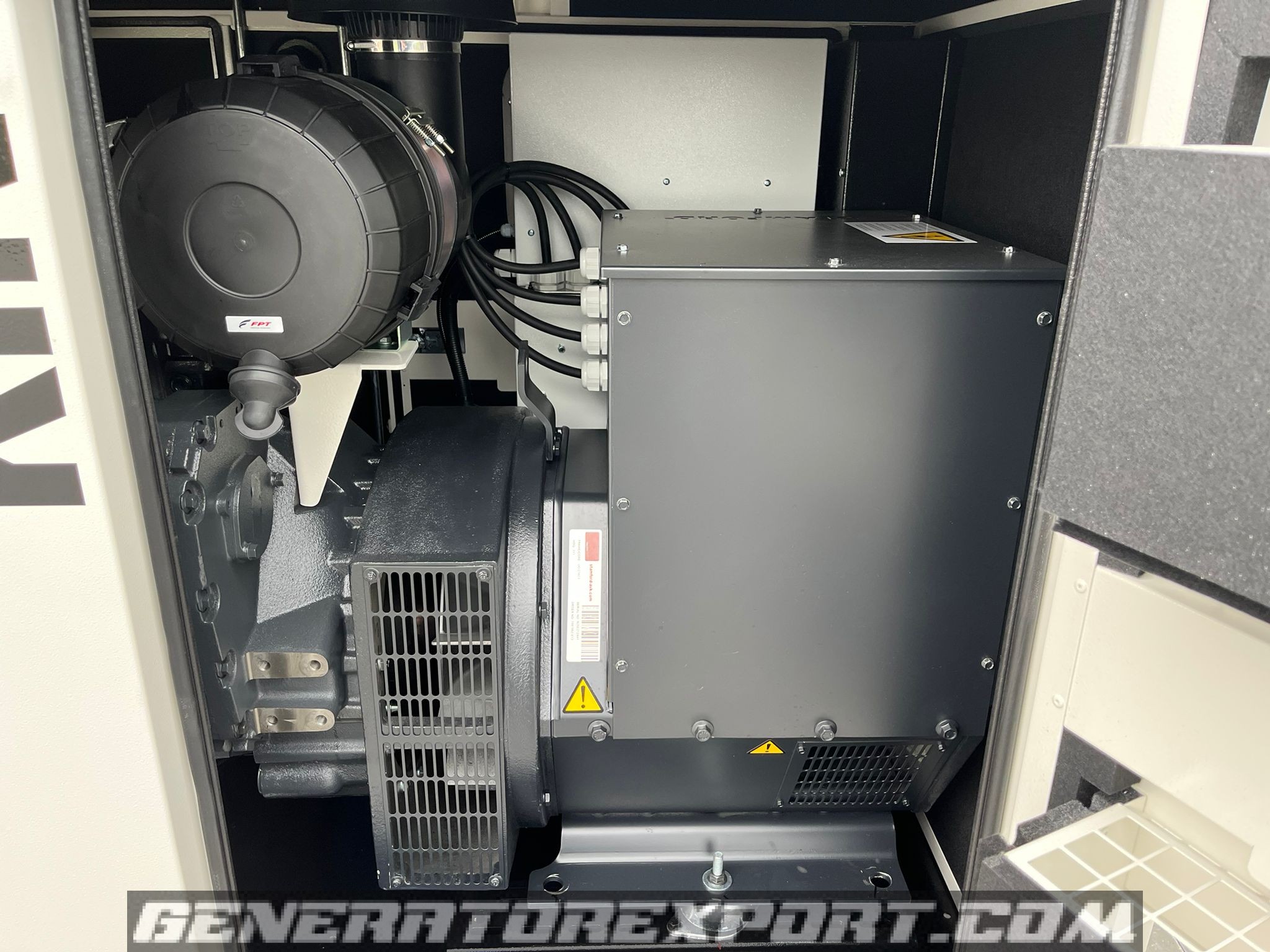

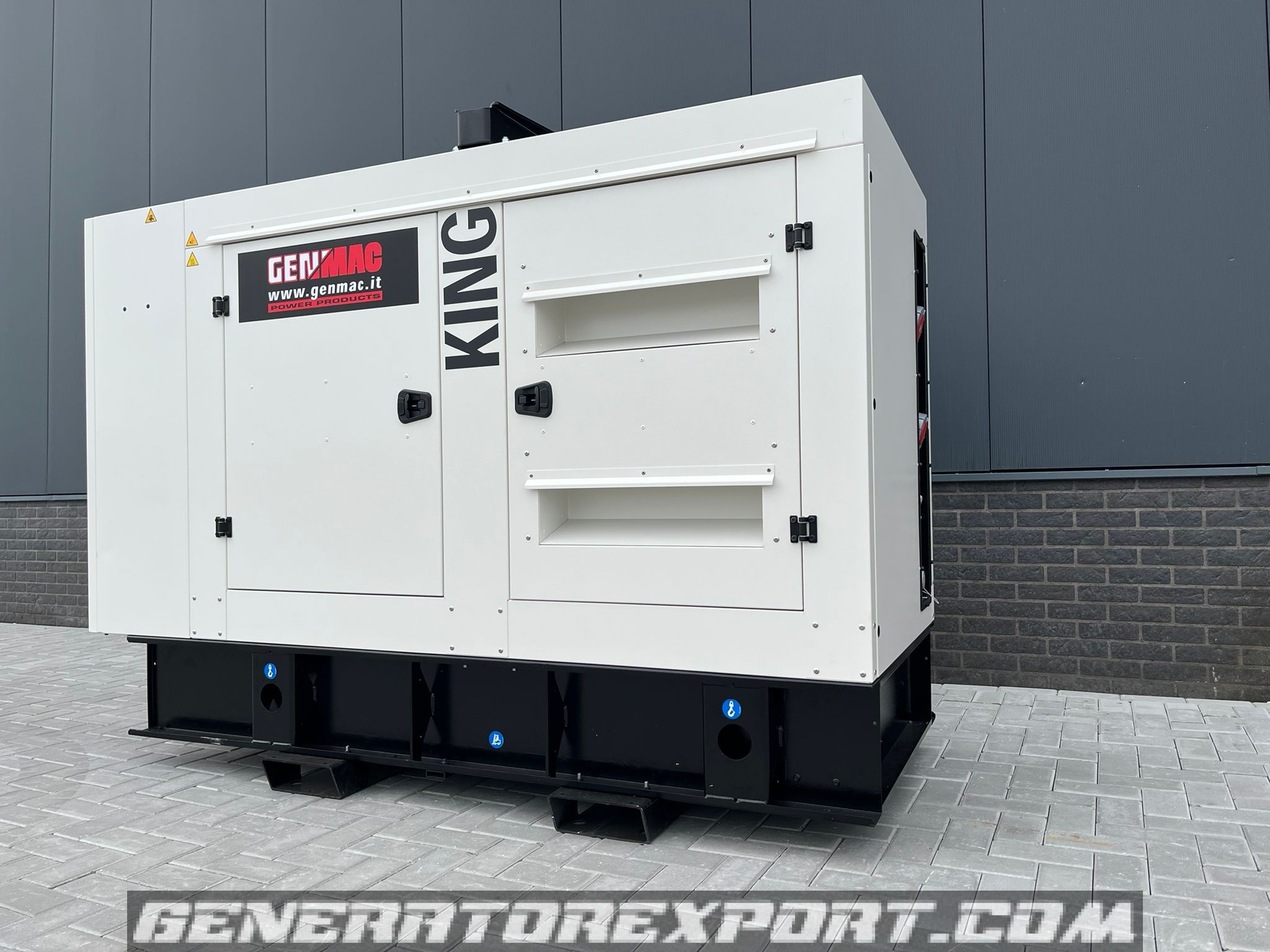

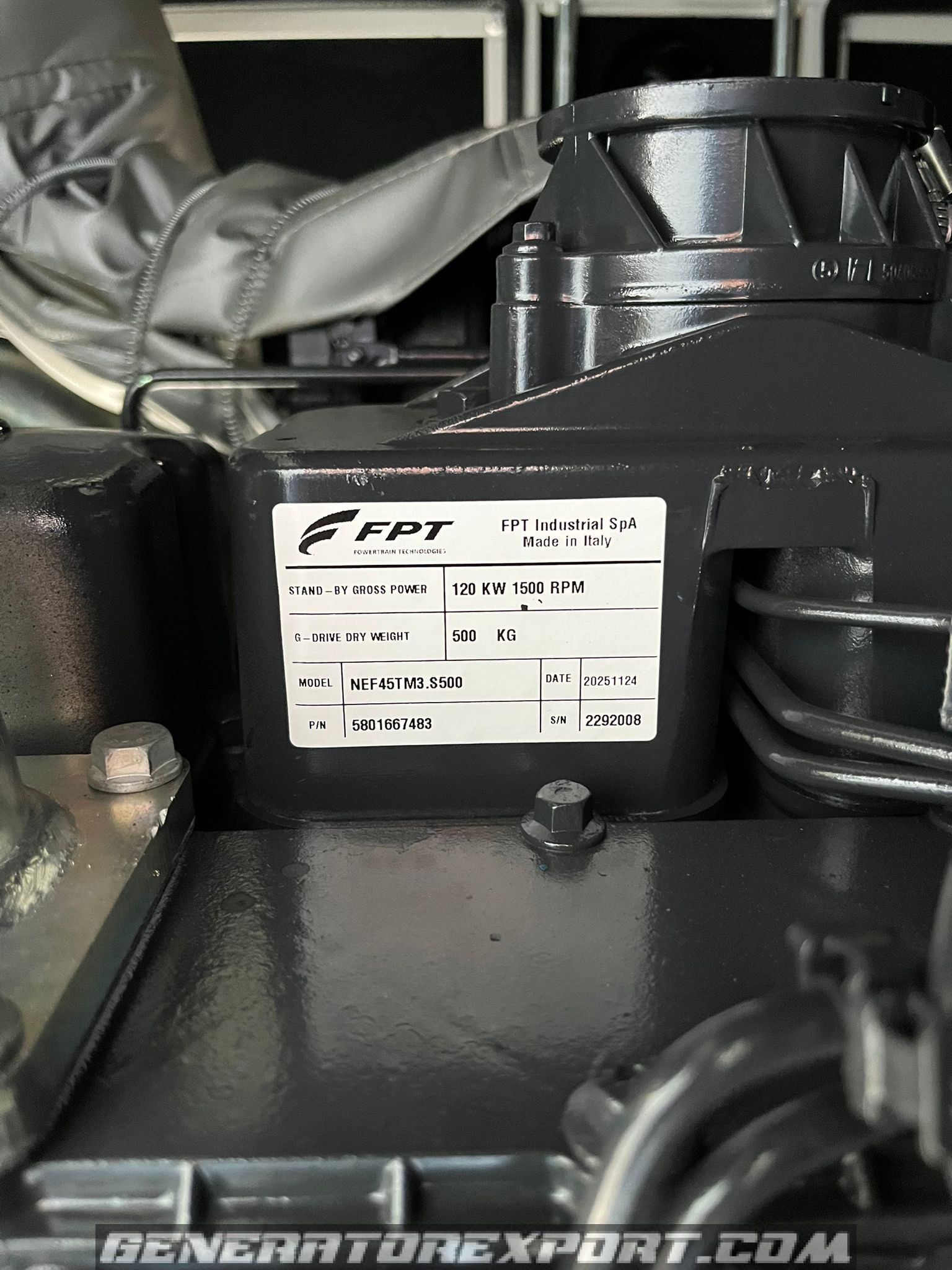

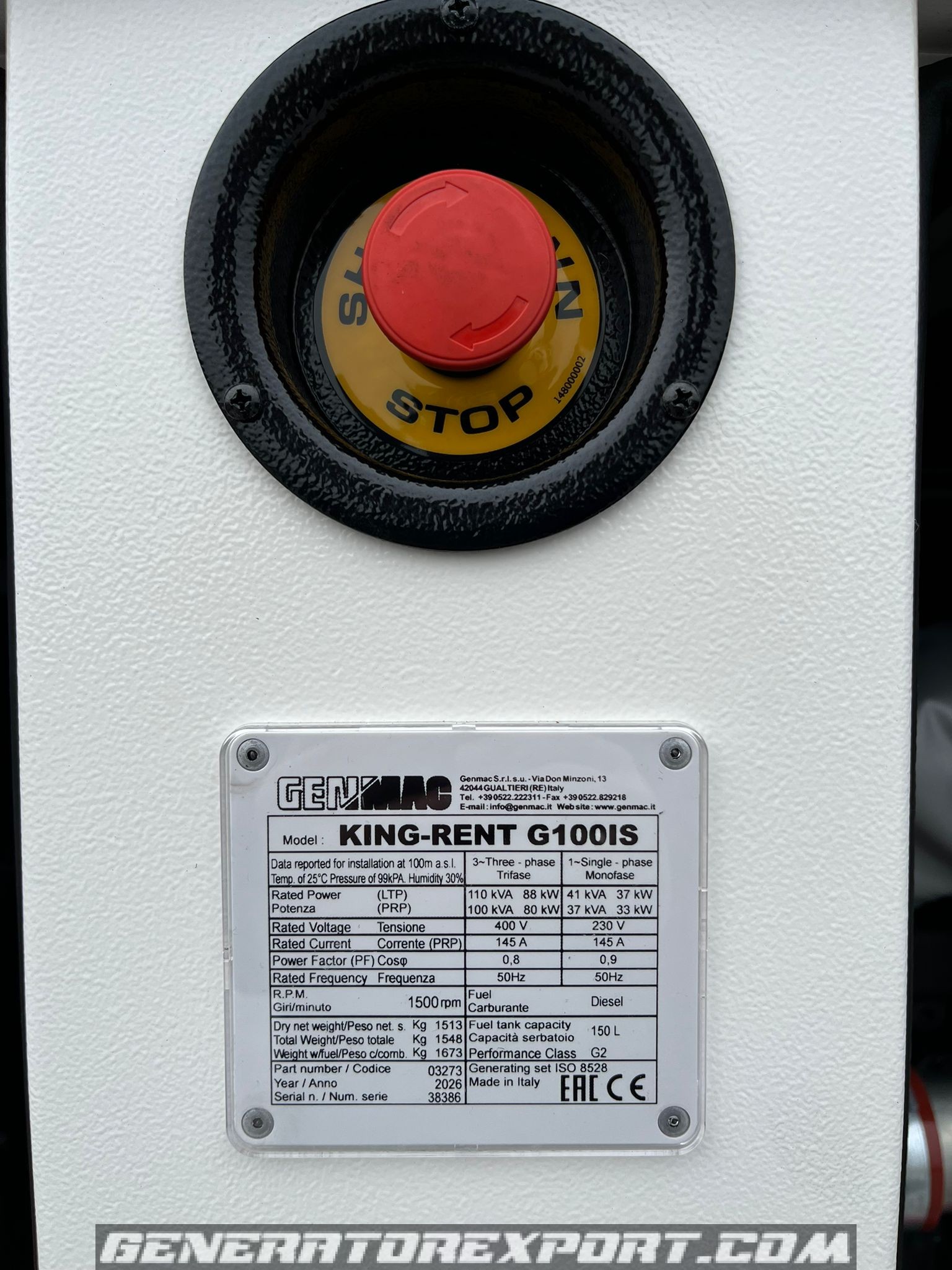

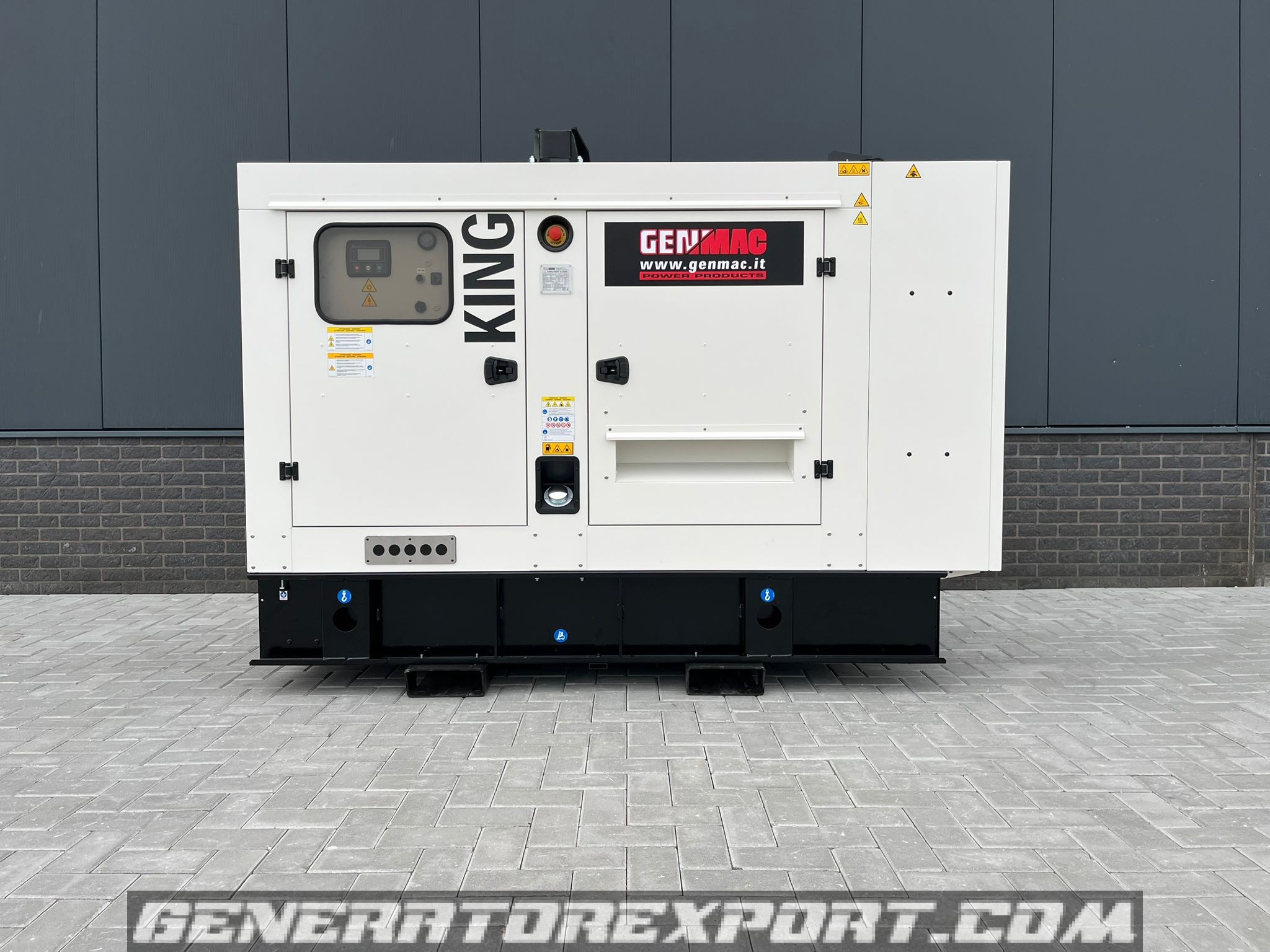

Genmac King RENT 100 kVA prime power FTP IVECO generator. 3 Phase 400V, 50 Hz. Equipped with a Stamford Alternator and Deep Sea control panel. All our generators are CE certified.
STANDARD FEATURES
- Silent Generator specifically designed for mobile application and Rental.

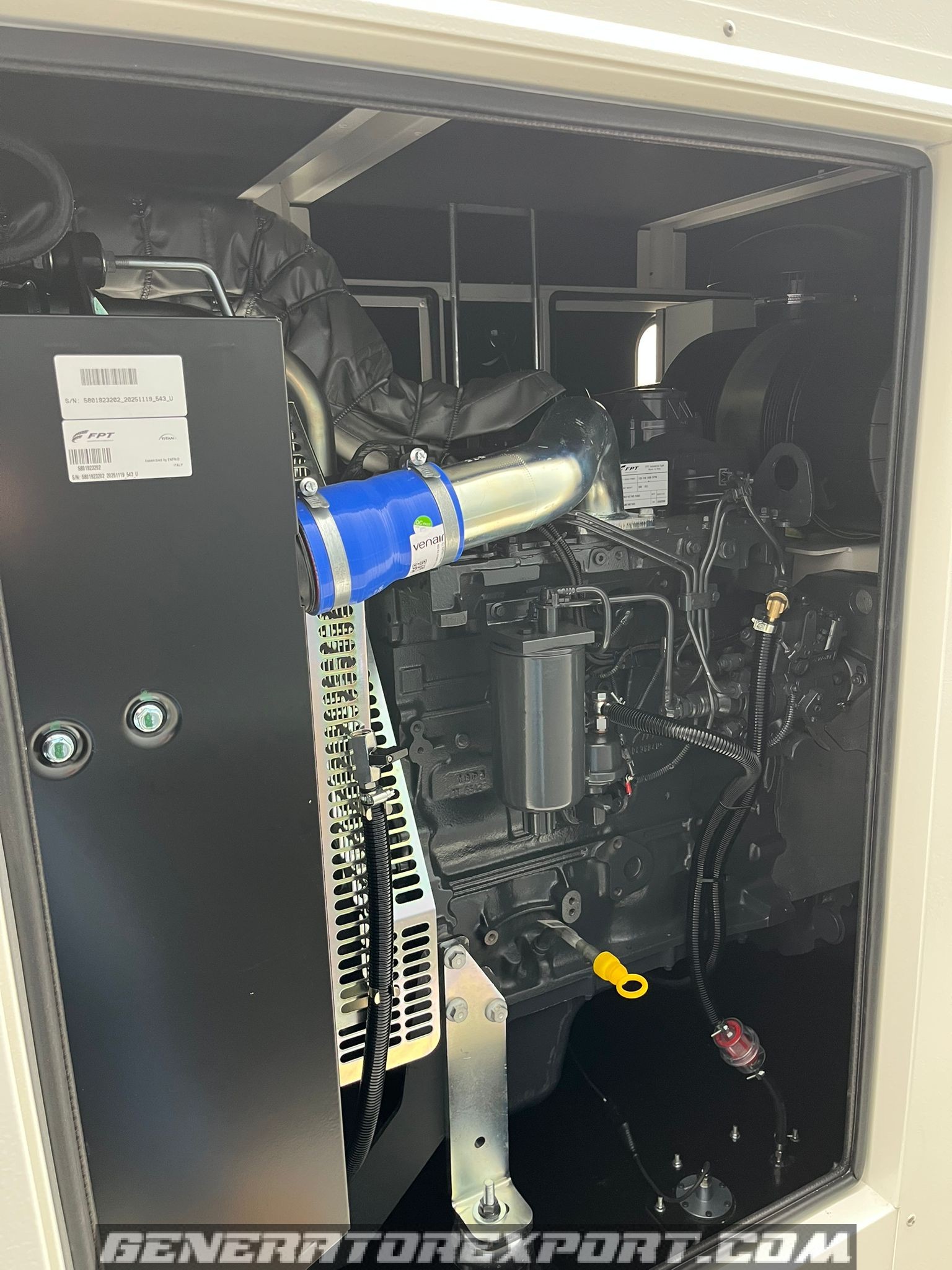

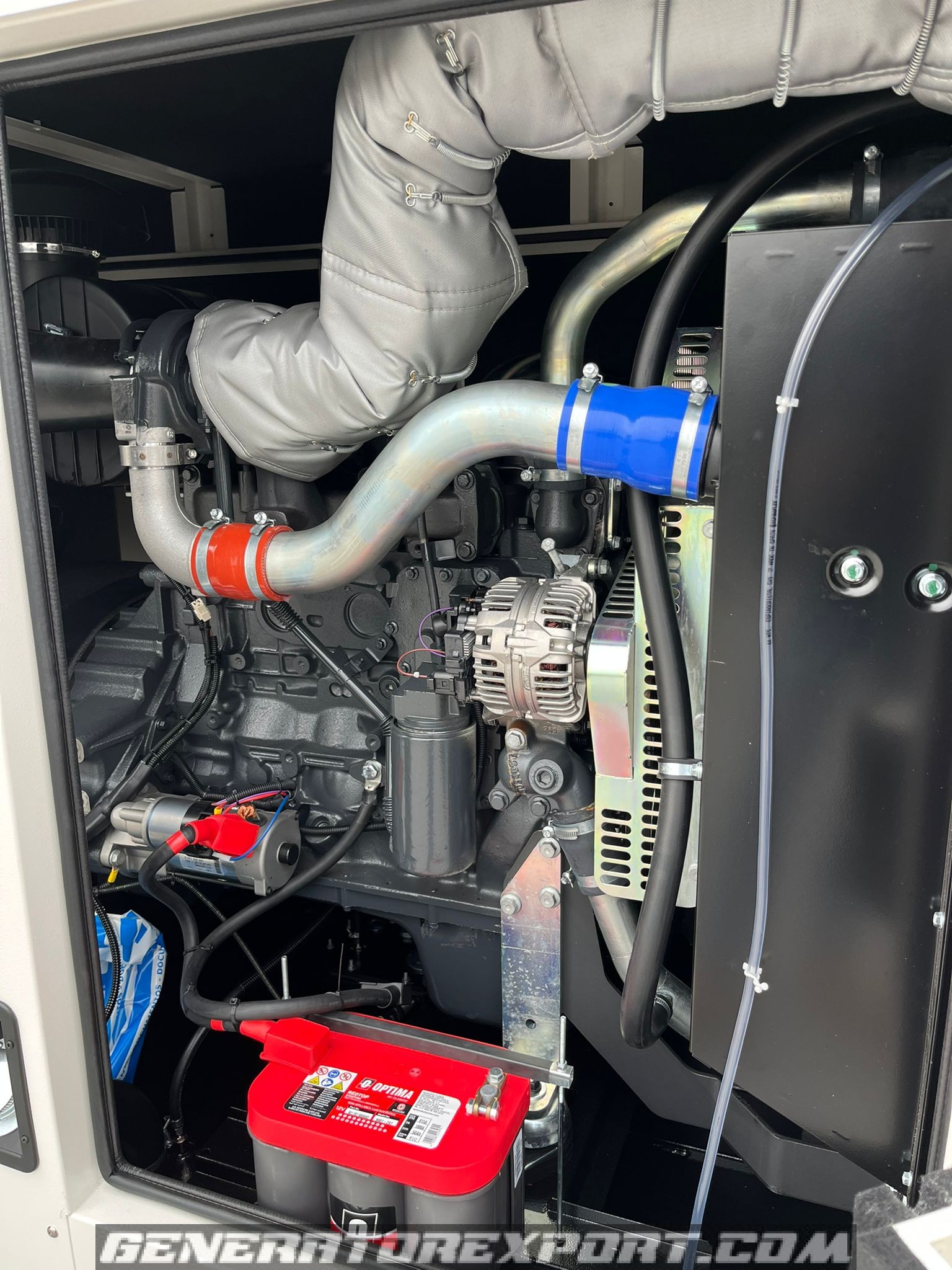

Easy to use and handle. - Mounting last generation of engine with low emission, for a clean power.
Frame: - Heavy duty fabricated welded base plate with high quality steel UNI
S235 JR - Heavy duty, bell type, rubber anti-vibration mountings

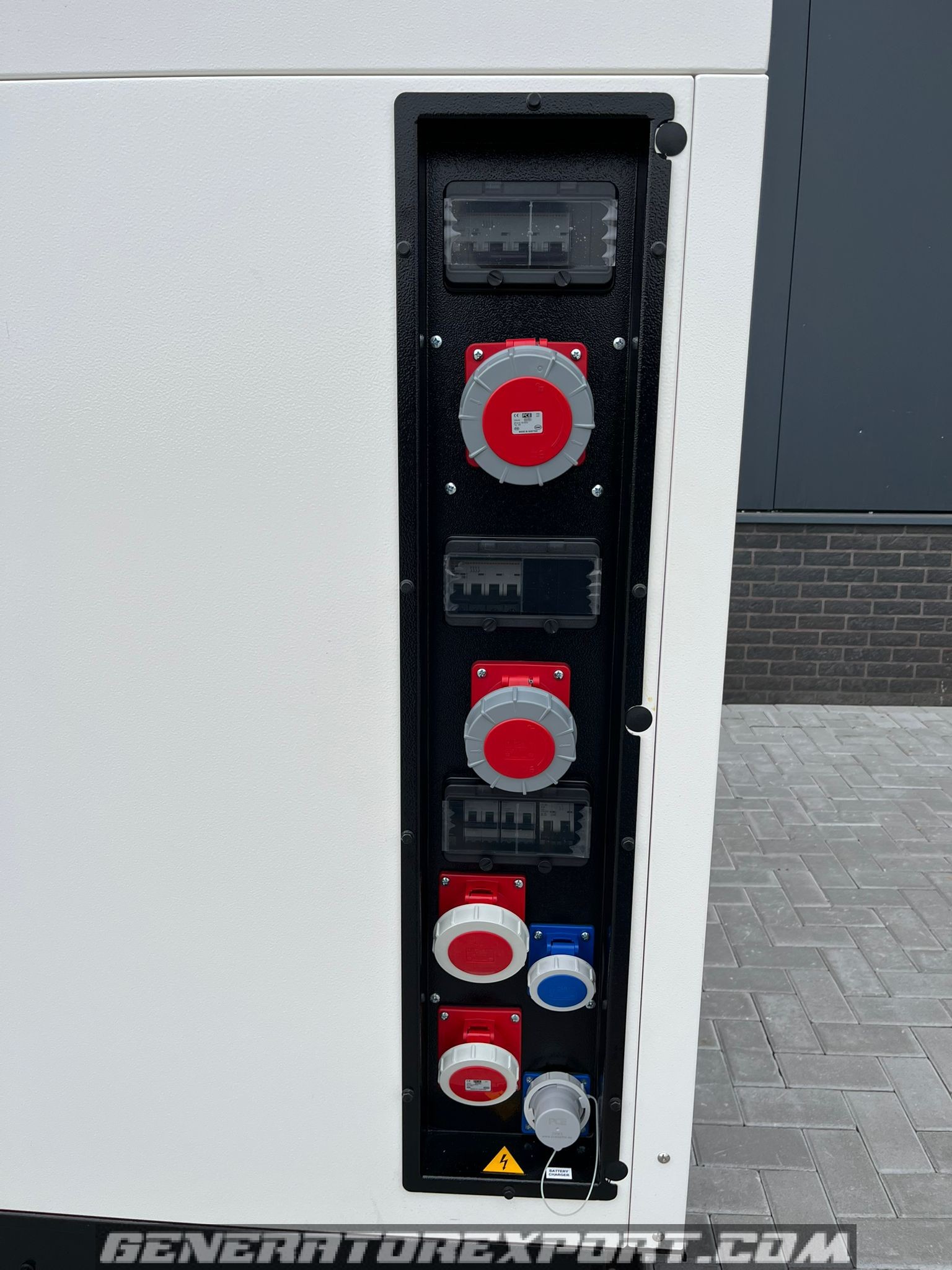

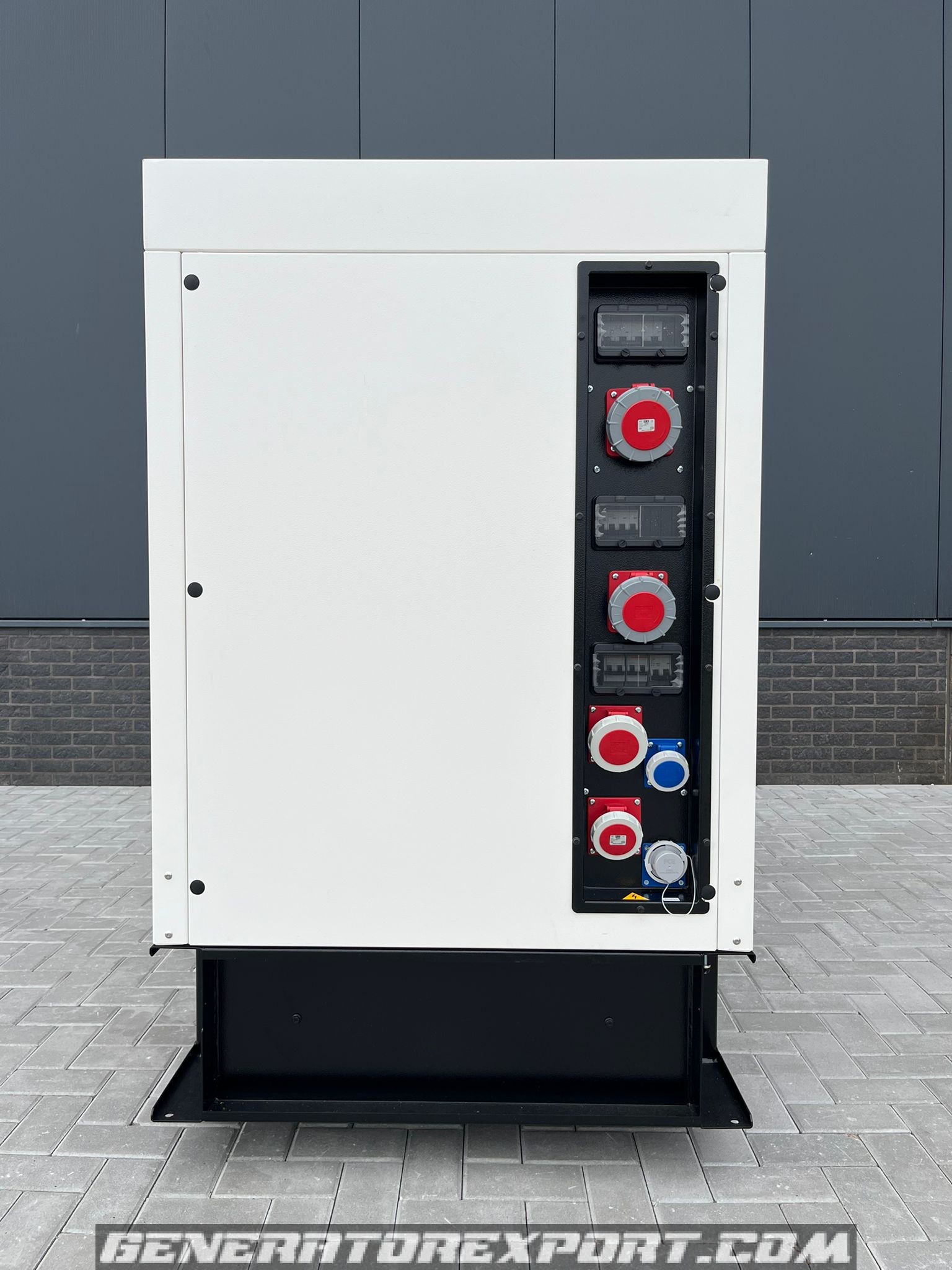

- Dedicated area to make easier the electrical connection to the load
- Fuel tank with drain plug and retention basin
- Base with bilateral forklift pockets allow lifting from all sides
- Canopy:
- Large doors for easy access for service and maintenance
- Electro-galvanized sheet DC01+ZE25/25 (EN 10152: 2009)
- High precision sheet cutting with nitrogen laser technology to avoid
oxidation - Sandblasting and cataphoresis treatment of intake / exhaust grids
- Weatherproof sealed joints
- Lockable handles in each door
- RAL 9010 “orange peel” specific powder coat paint for outdoor usage
- Rain cap on exhaust outlet
- Coolant refilling specific hatch
- Fuel filler outside enclosure

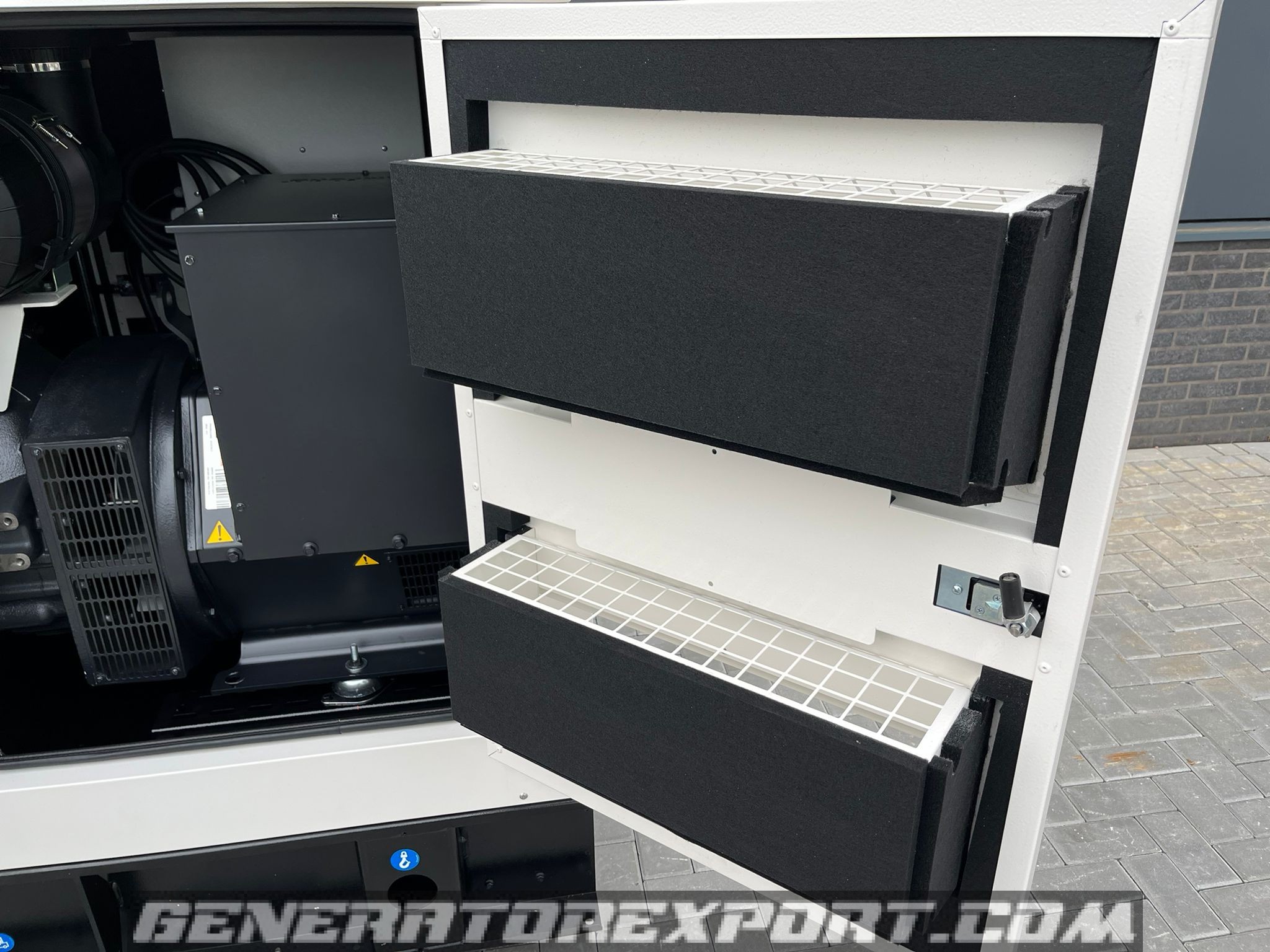

- Ecological Sound foam: 100% Recyclable, 40mm thickness, fire-proof
- self-extinguishing class1 fire-reaction compliant washable, mechanically
fixed to the frame - All units and components are prototype tested, factory build and
production tested. A specific control procedure duri
- Weatherproof Canopy
- Preheater
- Batteries and cables
- Electronic battery charger
- Fuel tank integrated in the chassis
- Flexible fuel hoses and oil drain valve
- Electrostatic powder painted chassis made of steel sheet welded
- Stainless galvanized steel design
- Electric panel: DSE
- Lifing system
- Super silent weatherproof canopy
- Muffler:
- Supersilent, Residential type, integrated in the canopy
- With aluminum coating

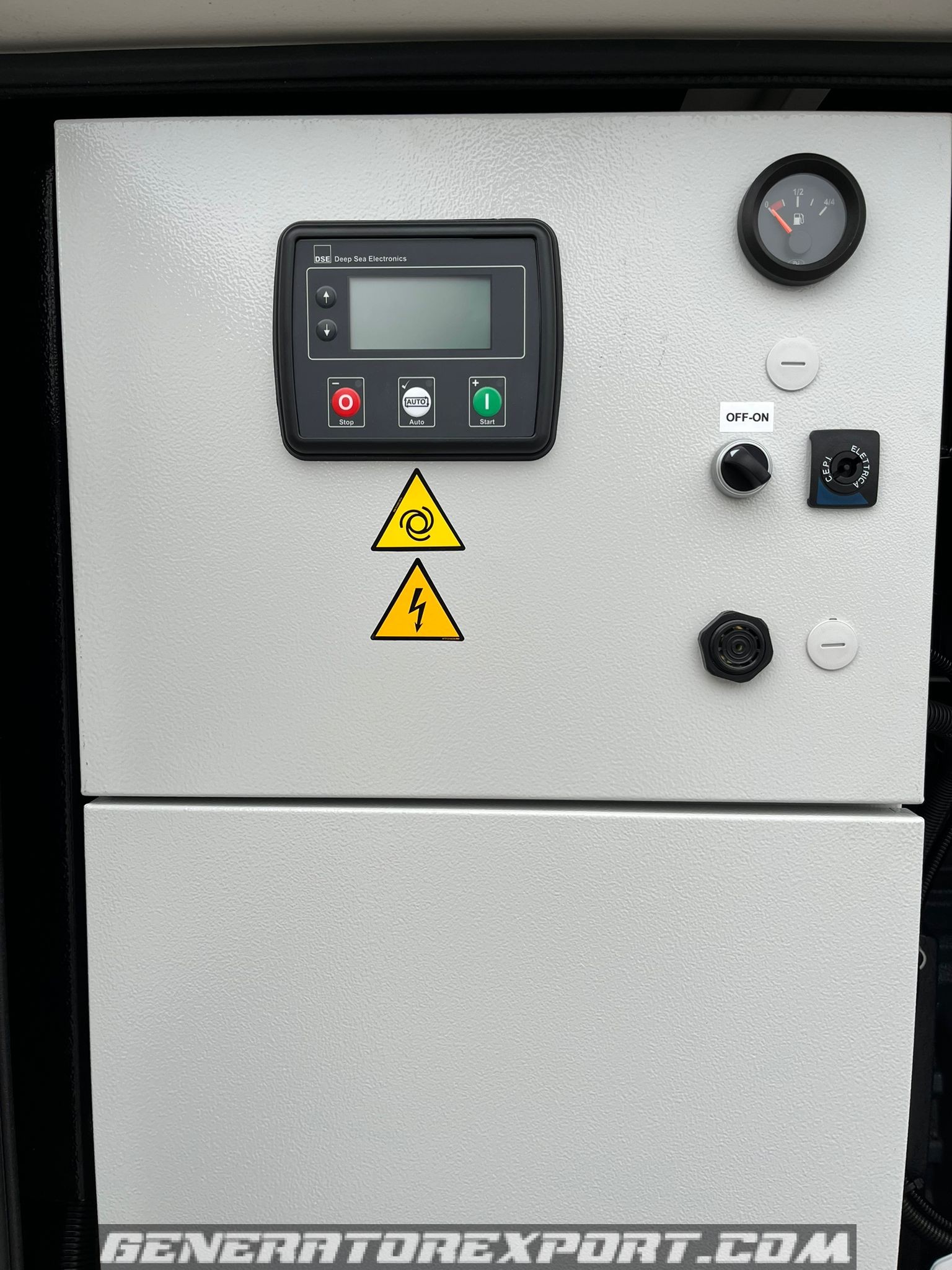

Control Panel:
- Self-standing control panel tower made with metal structure and
components to grant IP65 protection, easily removable for maintenance - Easy access to control panel through a canopy’s door, equipped with
lexan window - Control panel is divided in two independent and insulated boxes
separating Controls (Controller and numbered terminal board) from Power

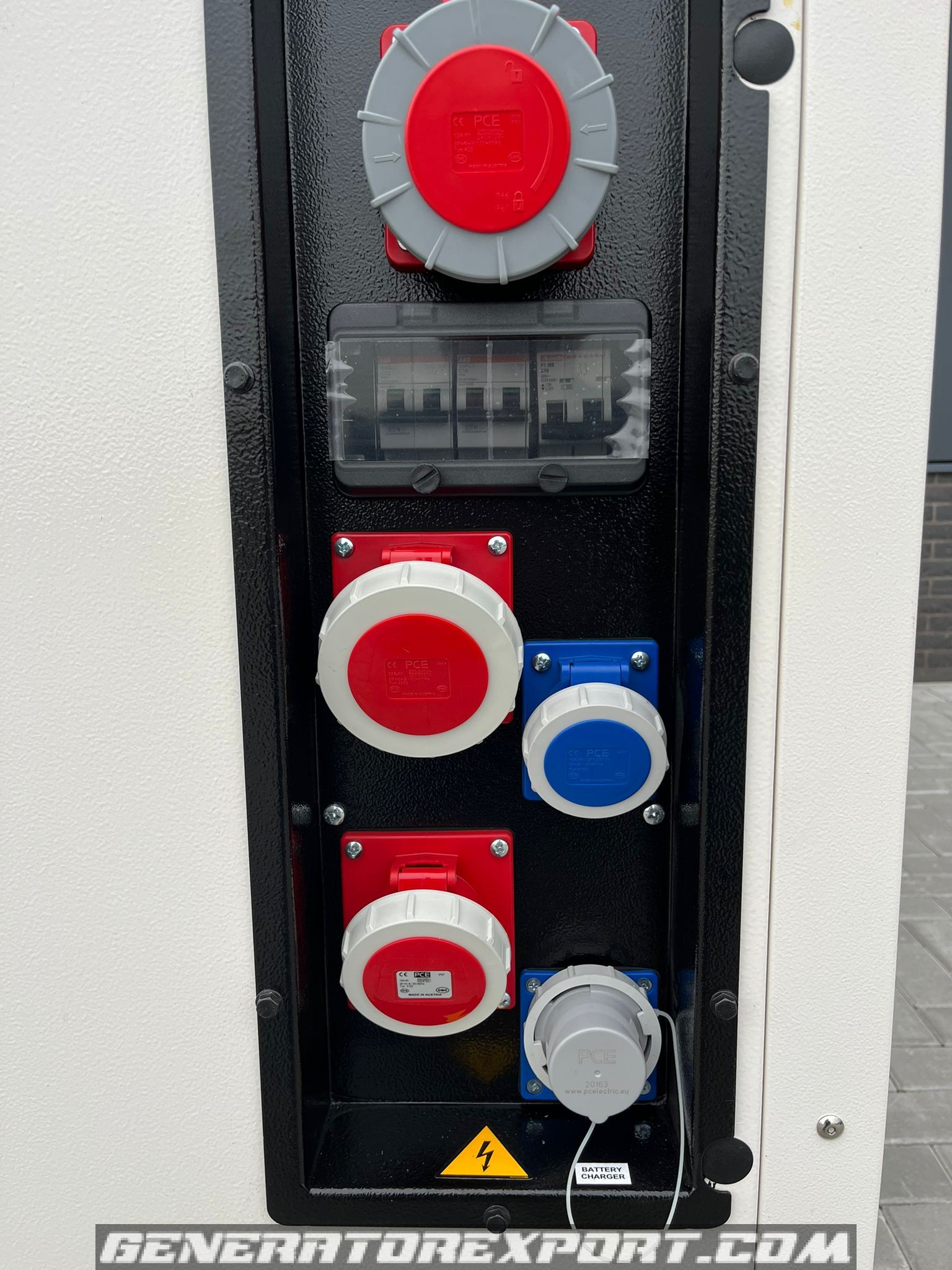

connection (circuit breaker and cable inlet) - External dedicated area to make easier the electrical connection to the
load - Power connection between circuit breaker and alternator made with high
resistance neoprene cables (H07RNF) and using cable glands for
waterproof connections
