Description

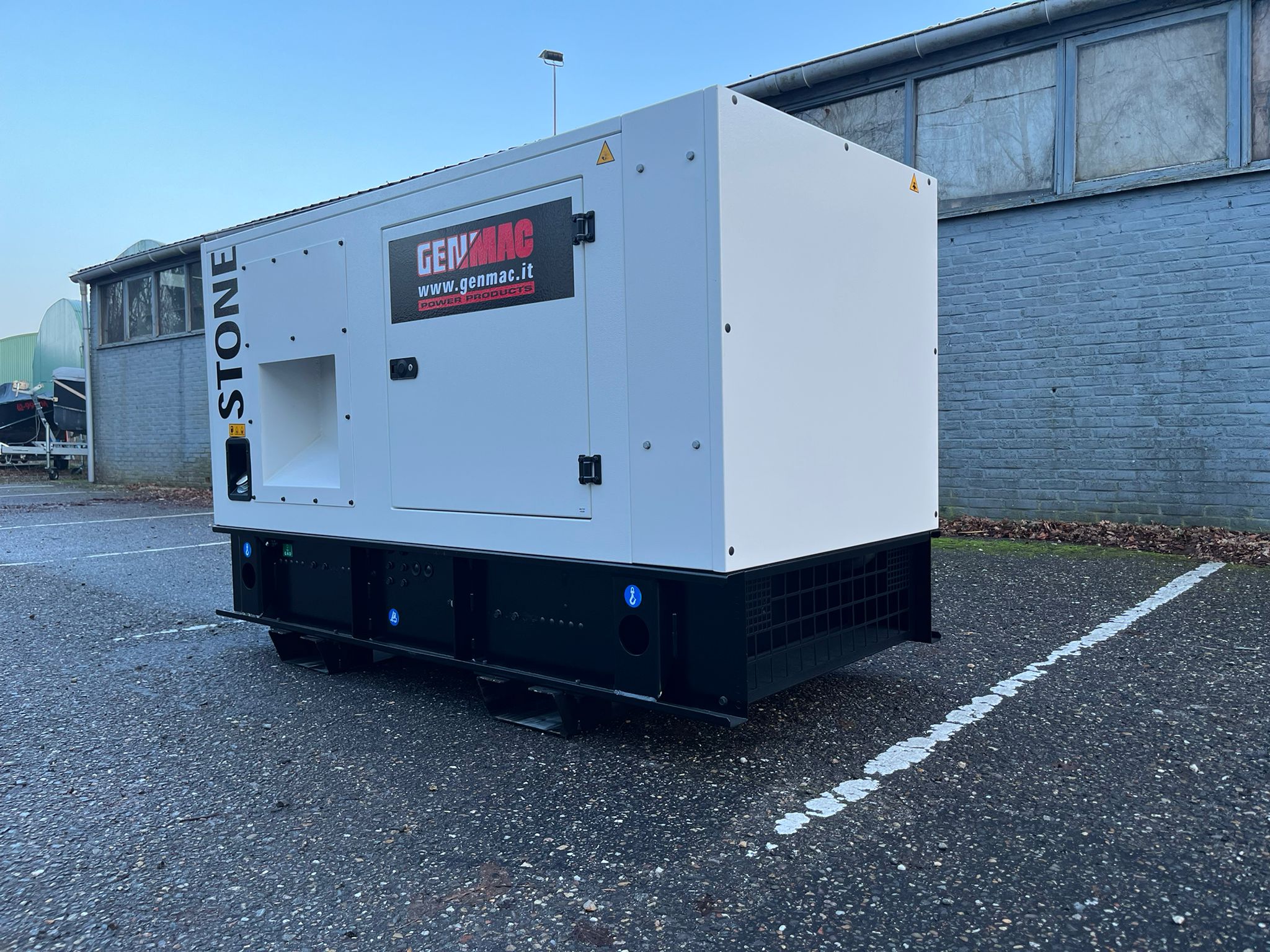

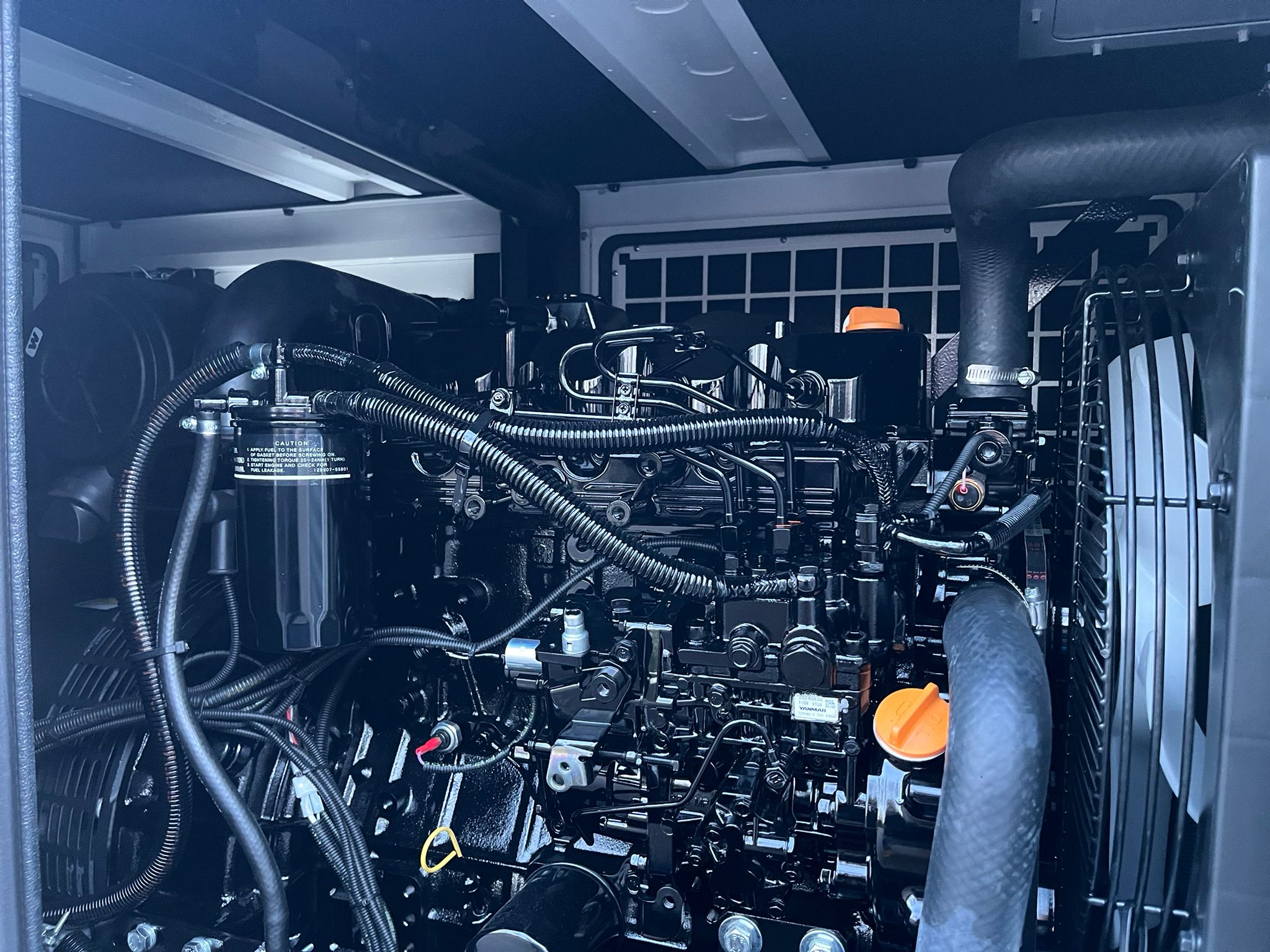

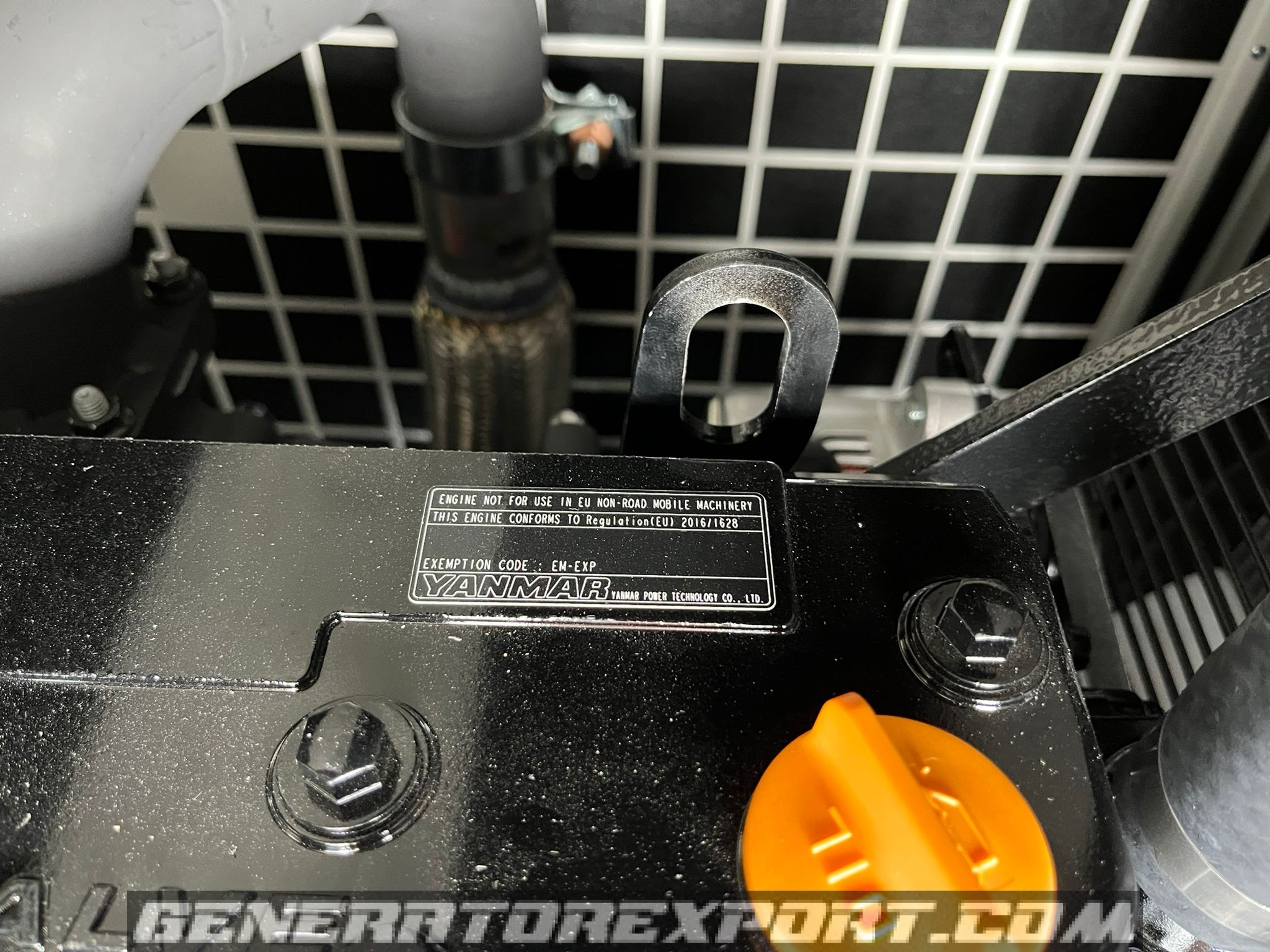

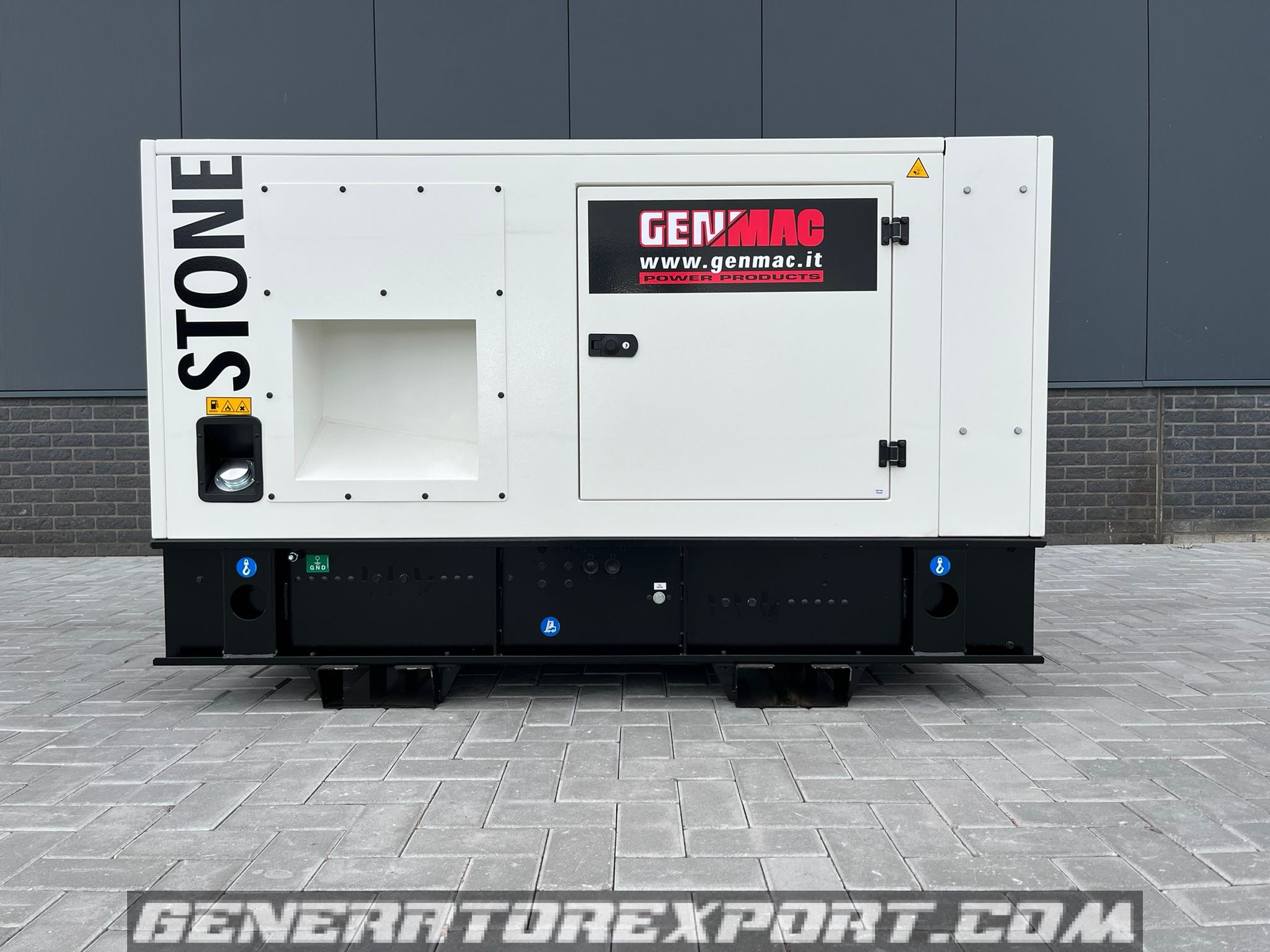

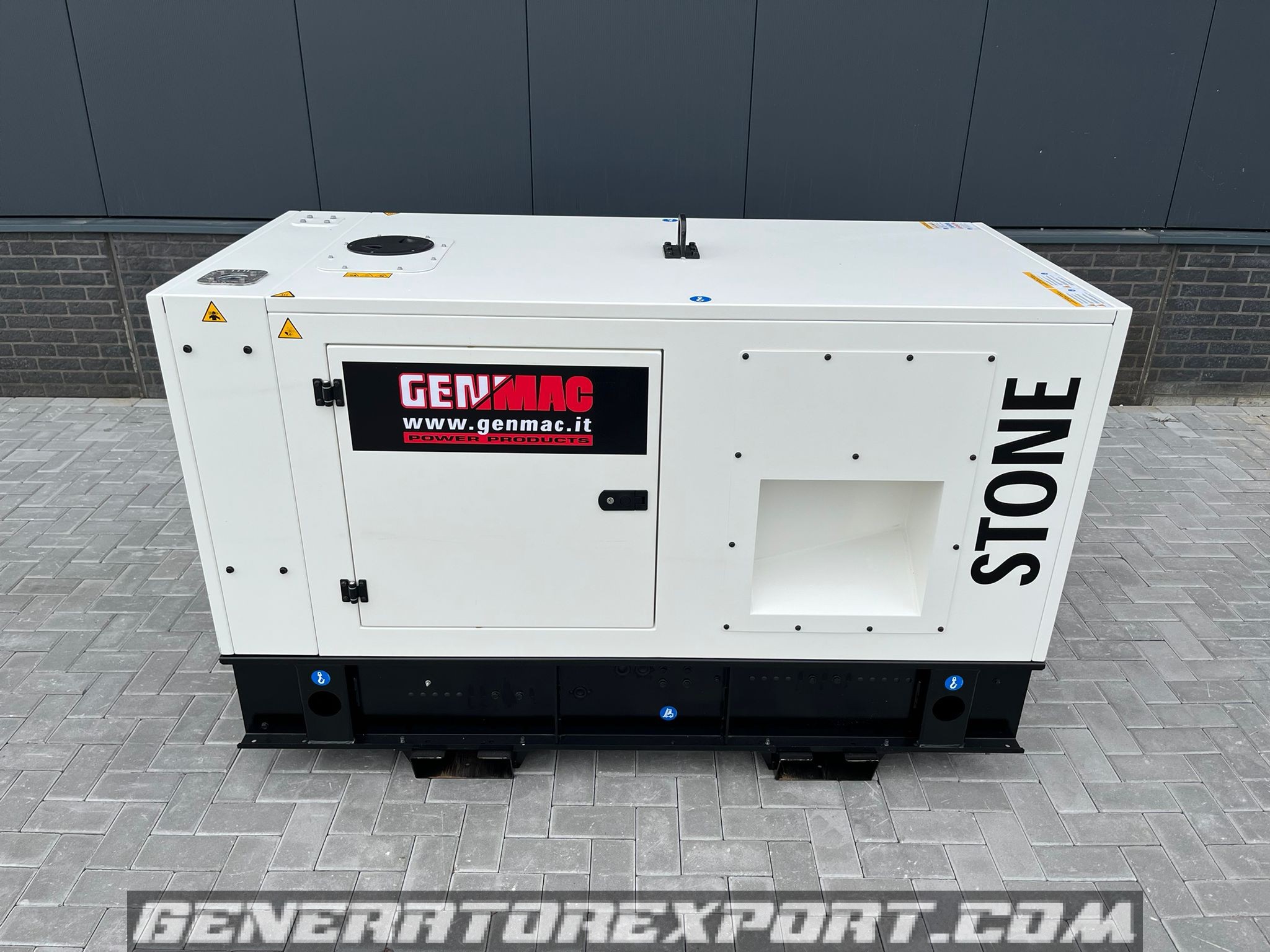

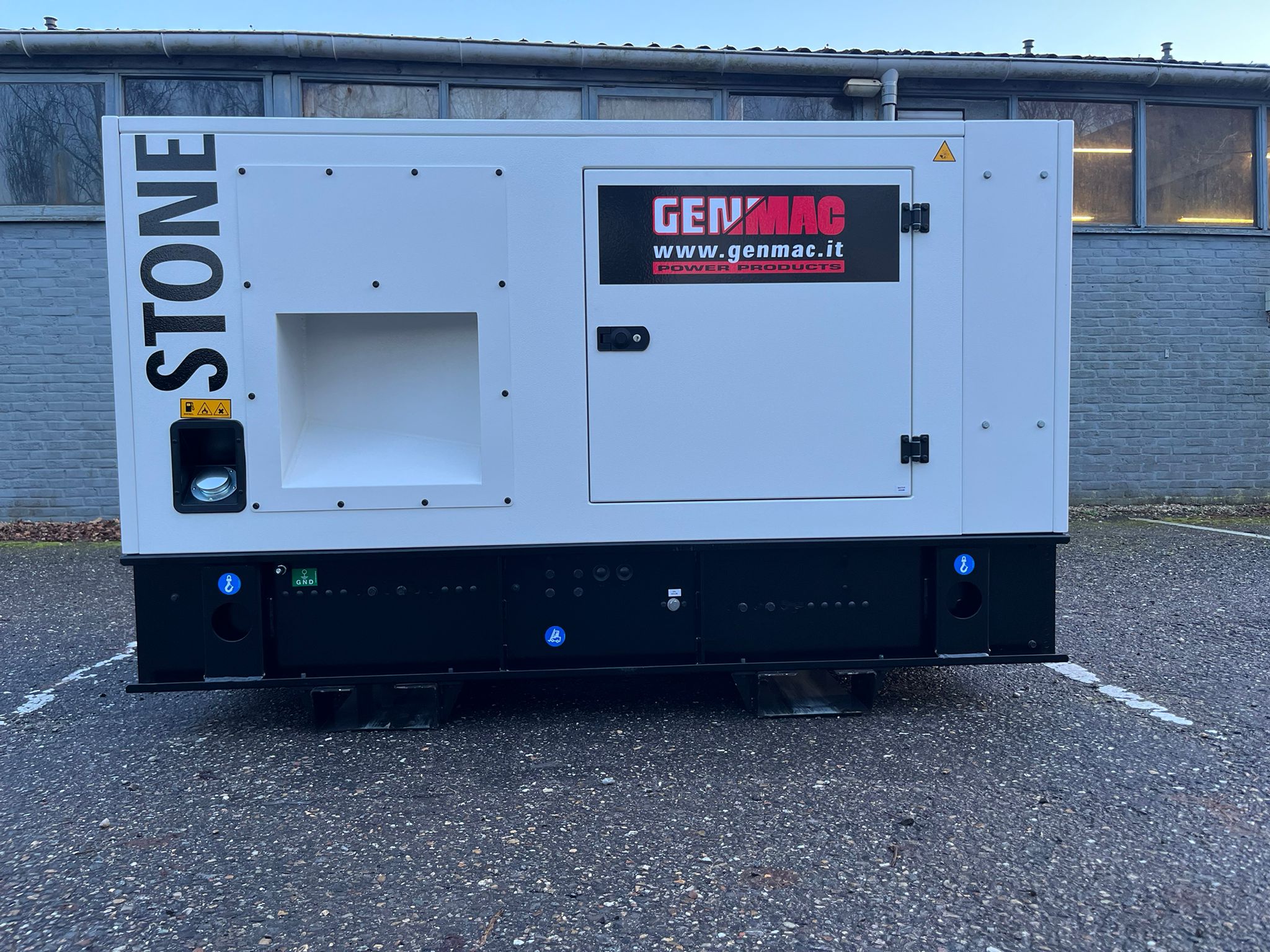

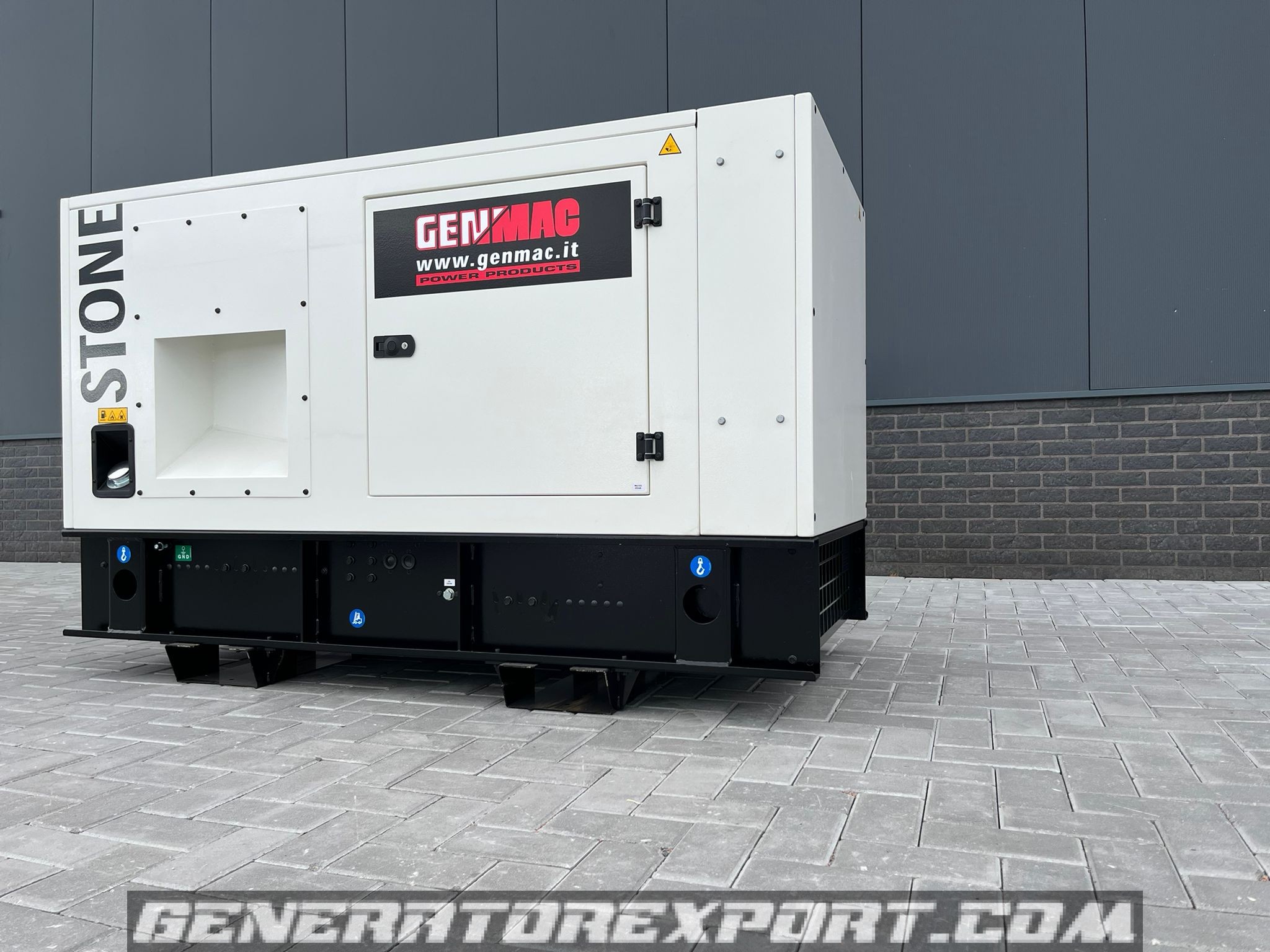

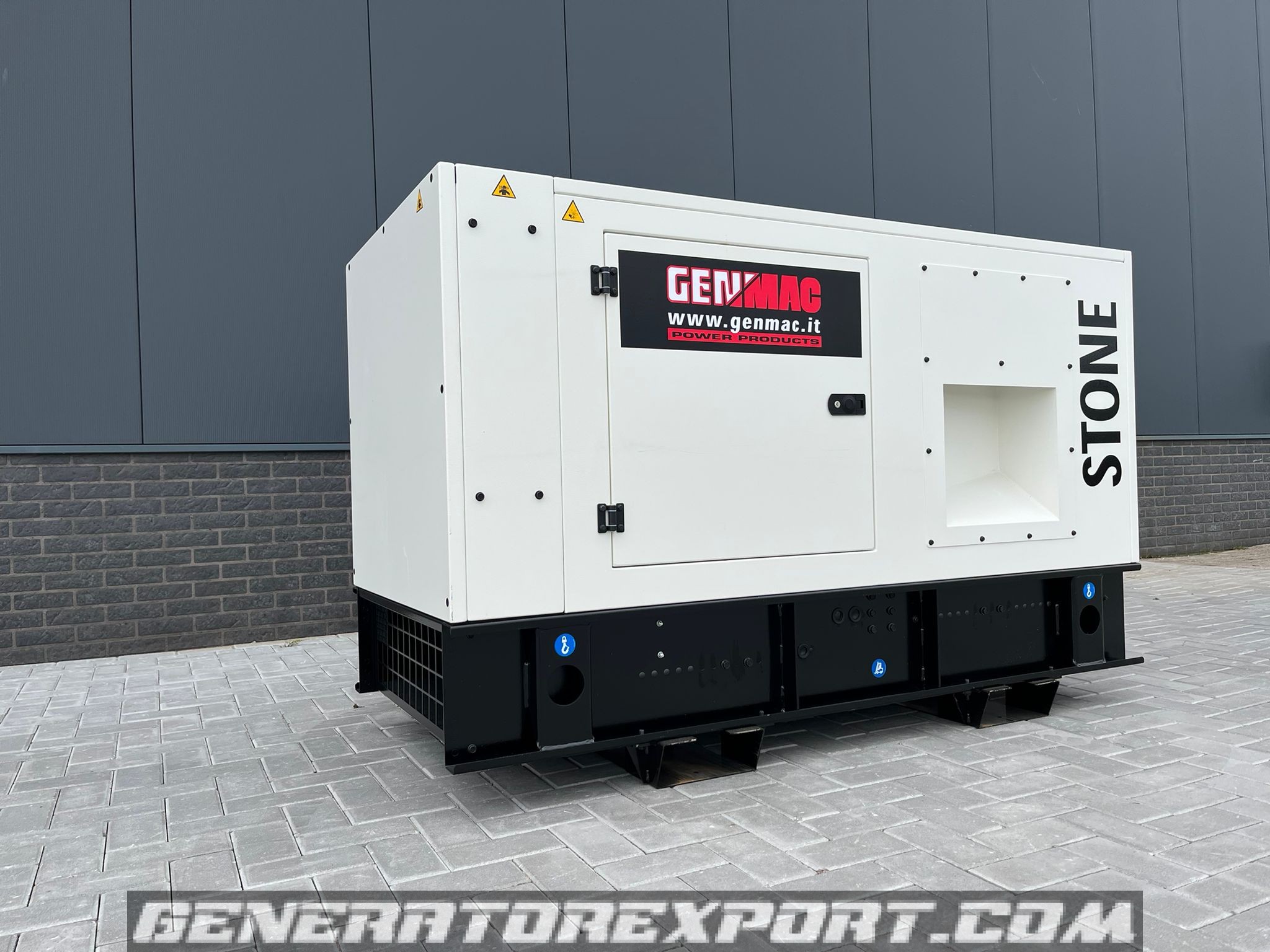

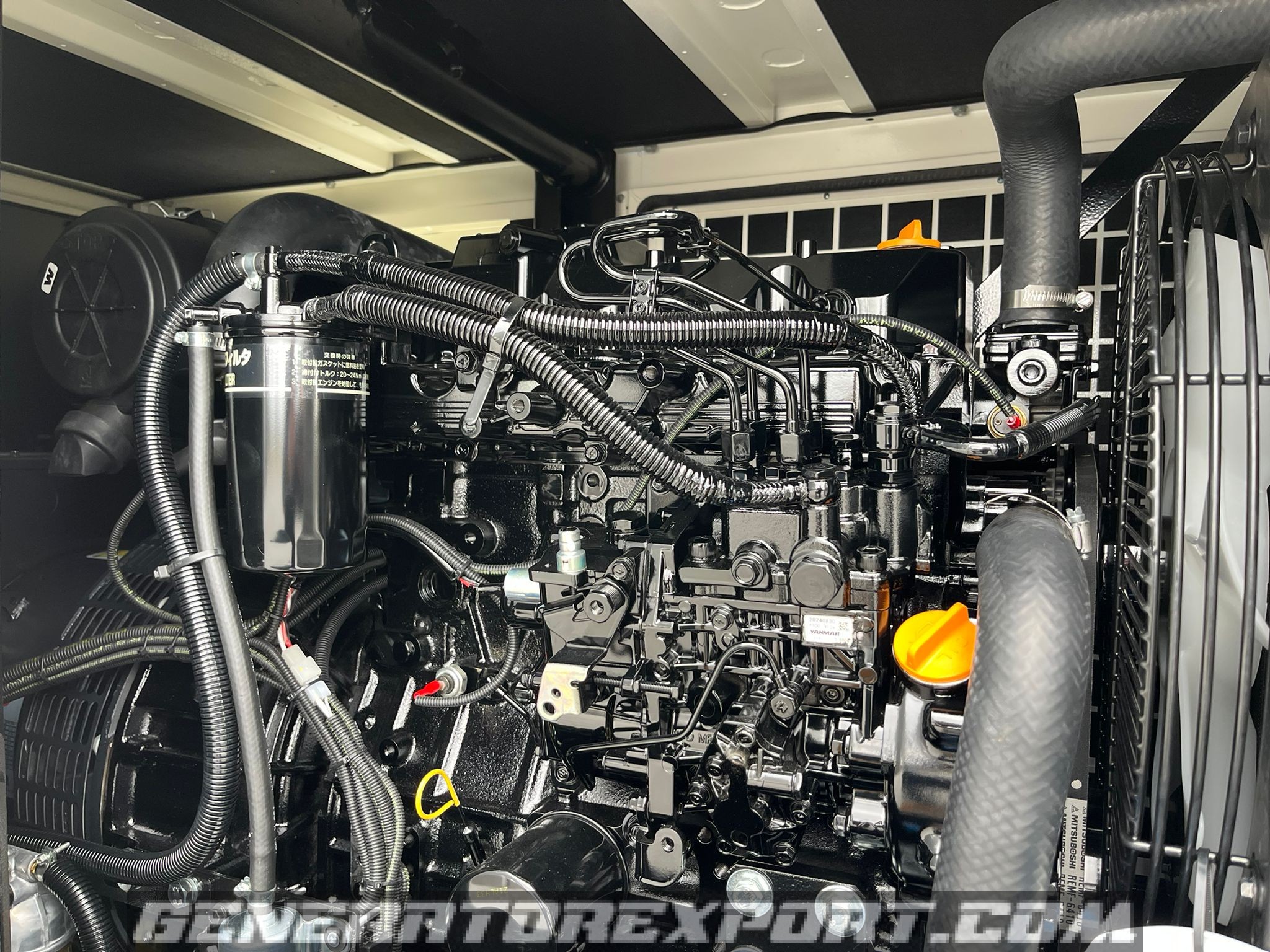

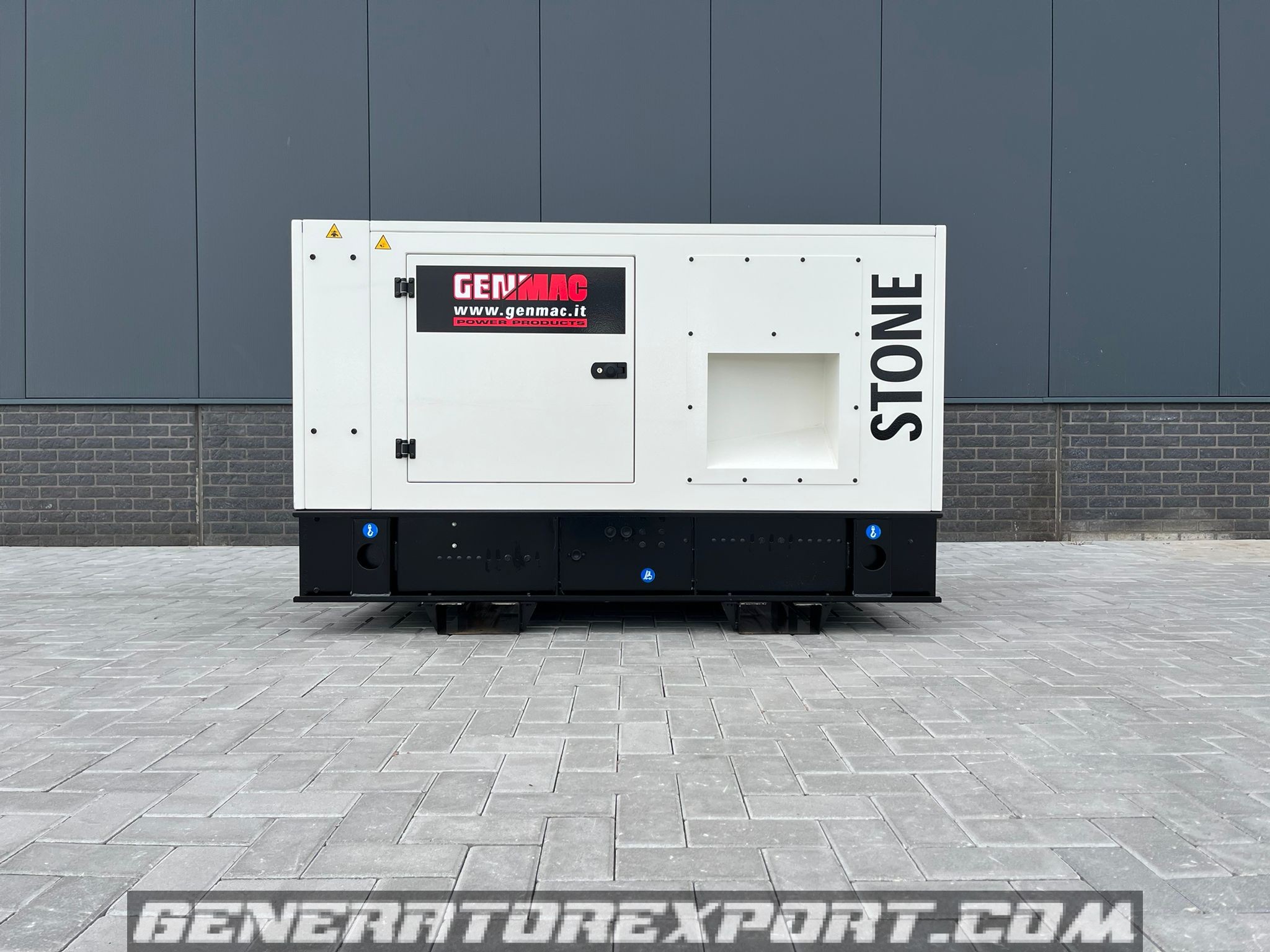

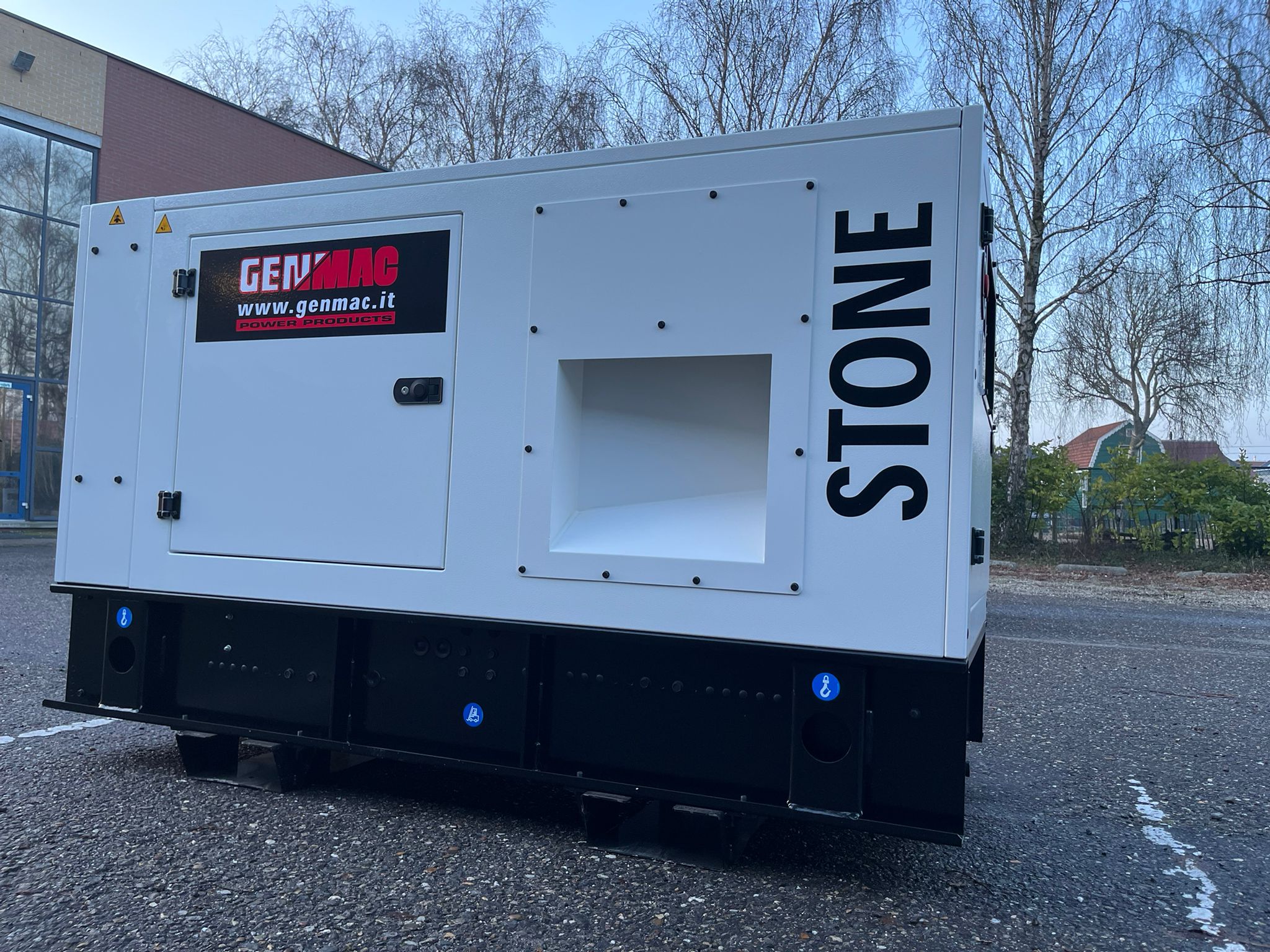

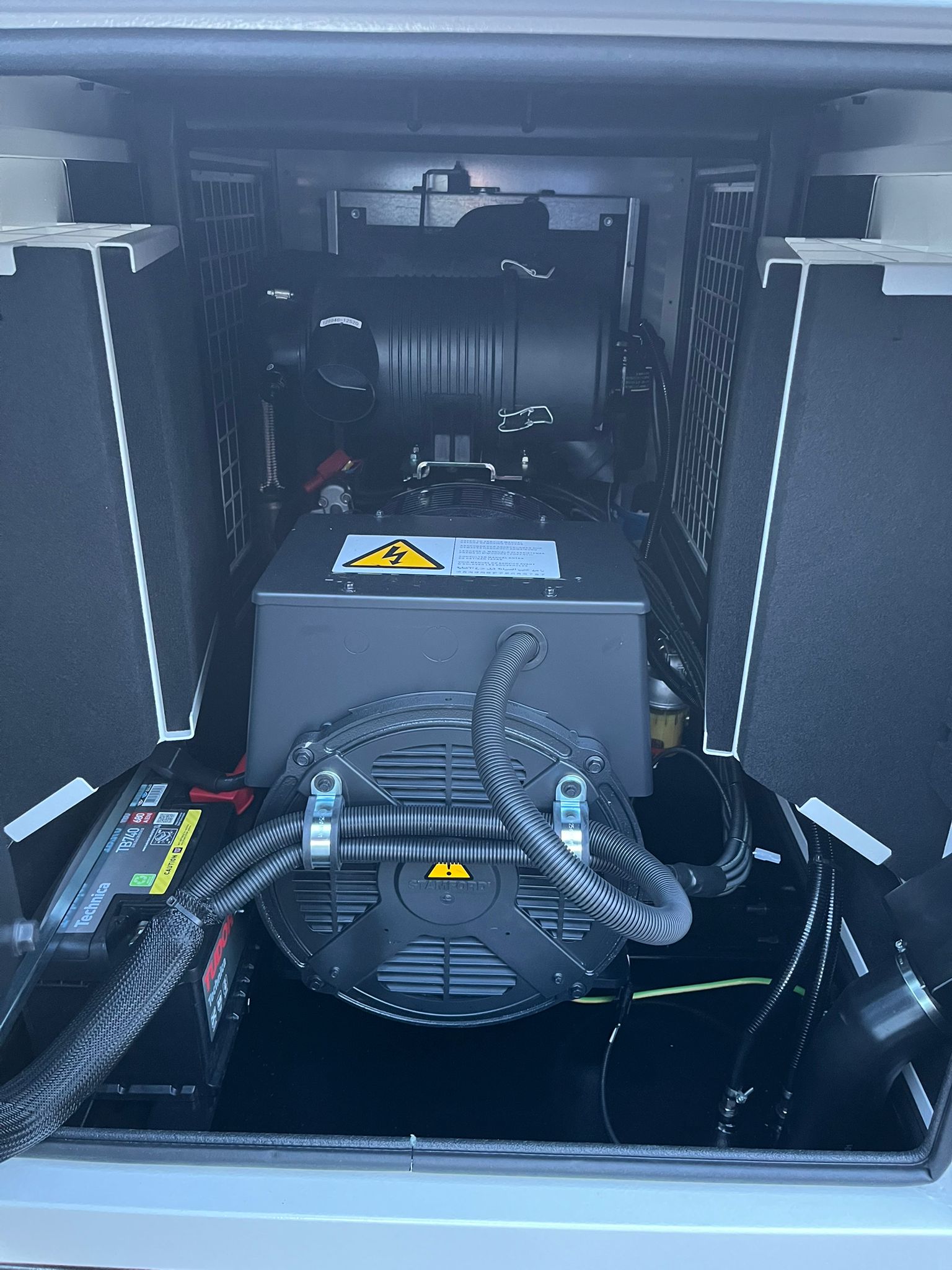

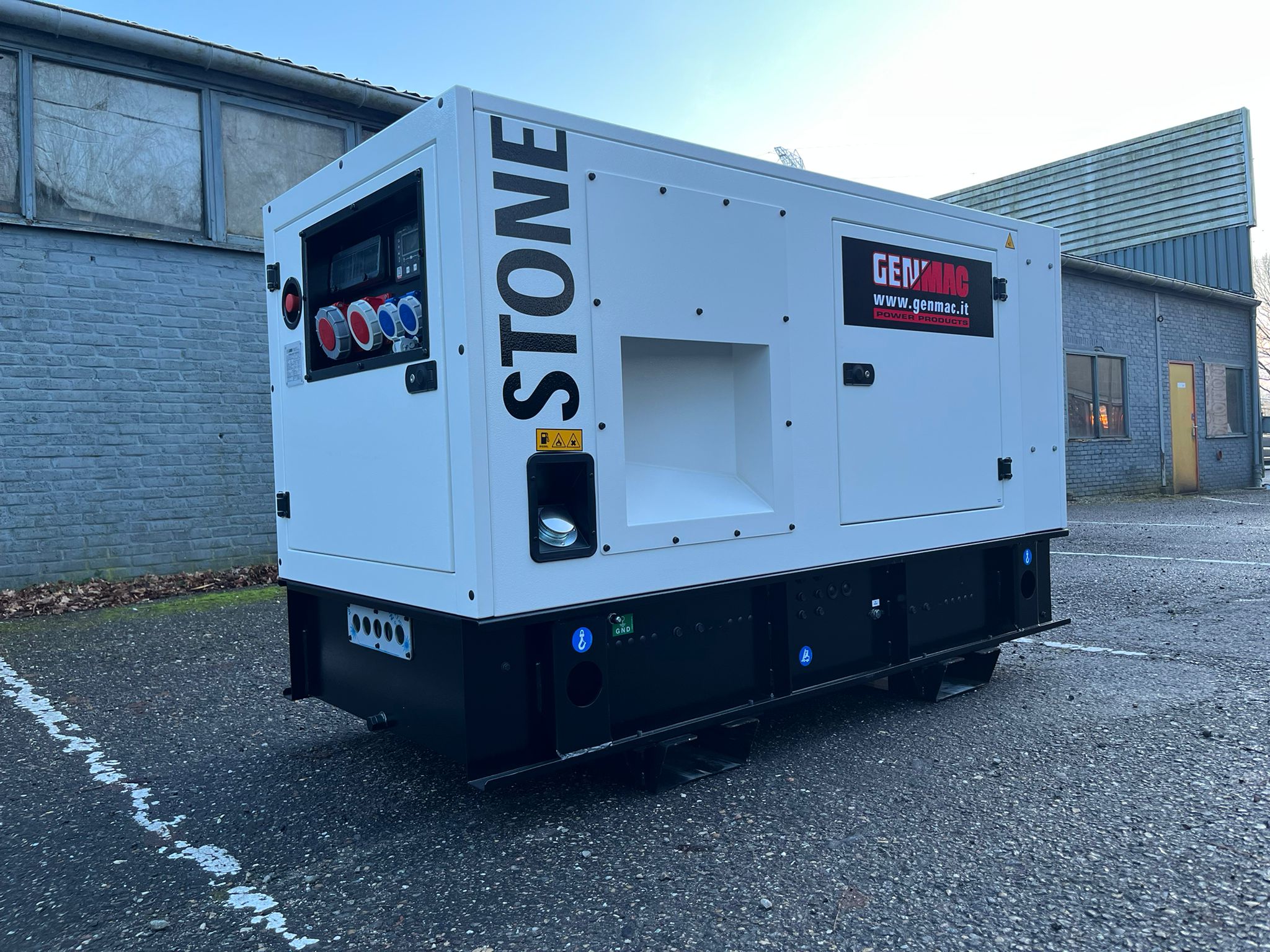

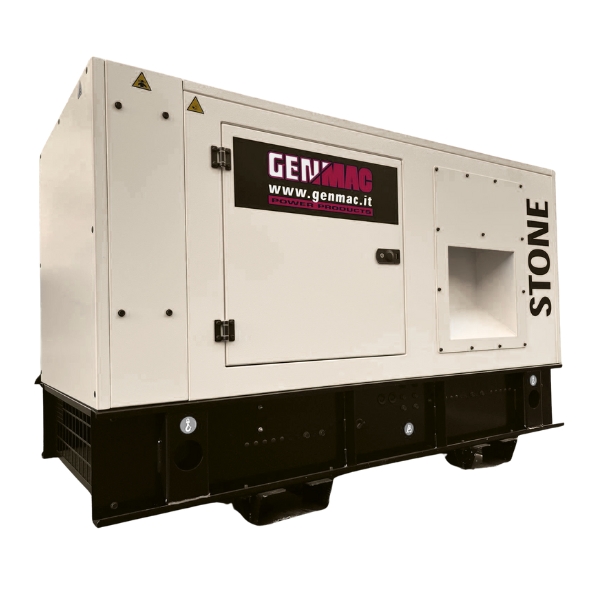

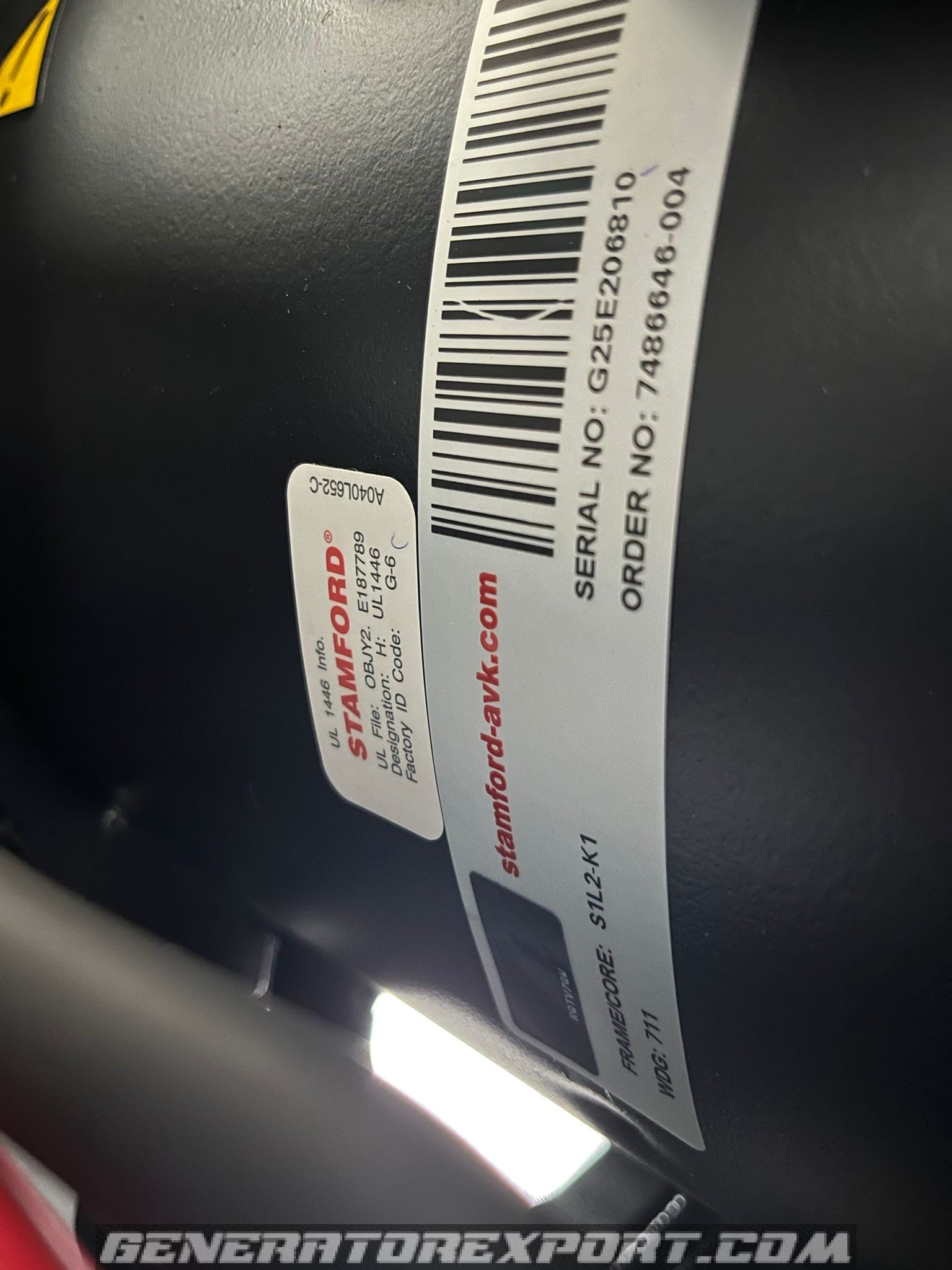

Genmac Stone Rent 30 kVA Yanmar generator 3 Phase 400V, 50 Hz. These Stage 3 Yanmar generators are supplied with a stainless galvanized steel canopy. The Yanmar engine is manufactured in Japan. This Generator is equipped with a Stamford Alternator and Deep Sea control panel. All our generators are CE certified.
STANDARD FEATURES
- Frame:
- Heavy duty fabricated welded base plate with high quality steel UNI
S235 JR - Heavy duty, bell type, rubber anti-vibration mountings
- Fuel tank with drain plug and retention basin
- Base with bilateral forklift pockets allow lifting from all sides

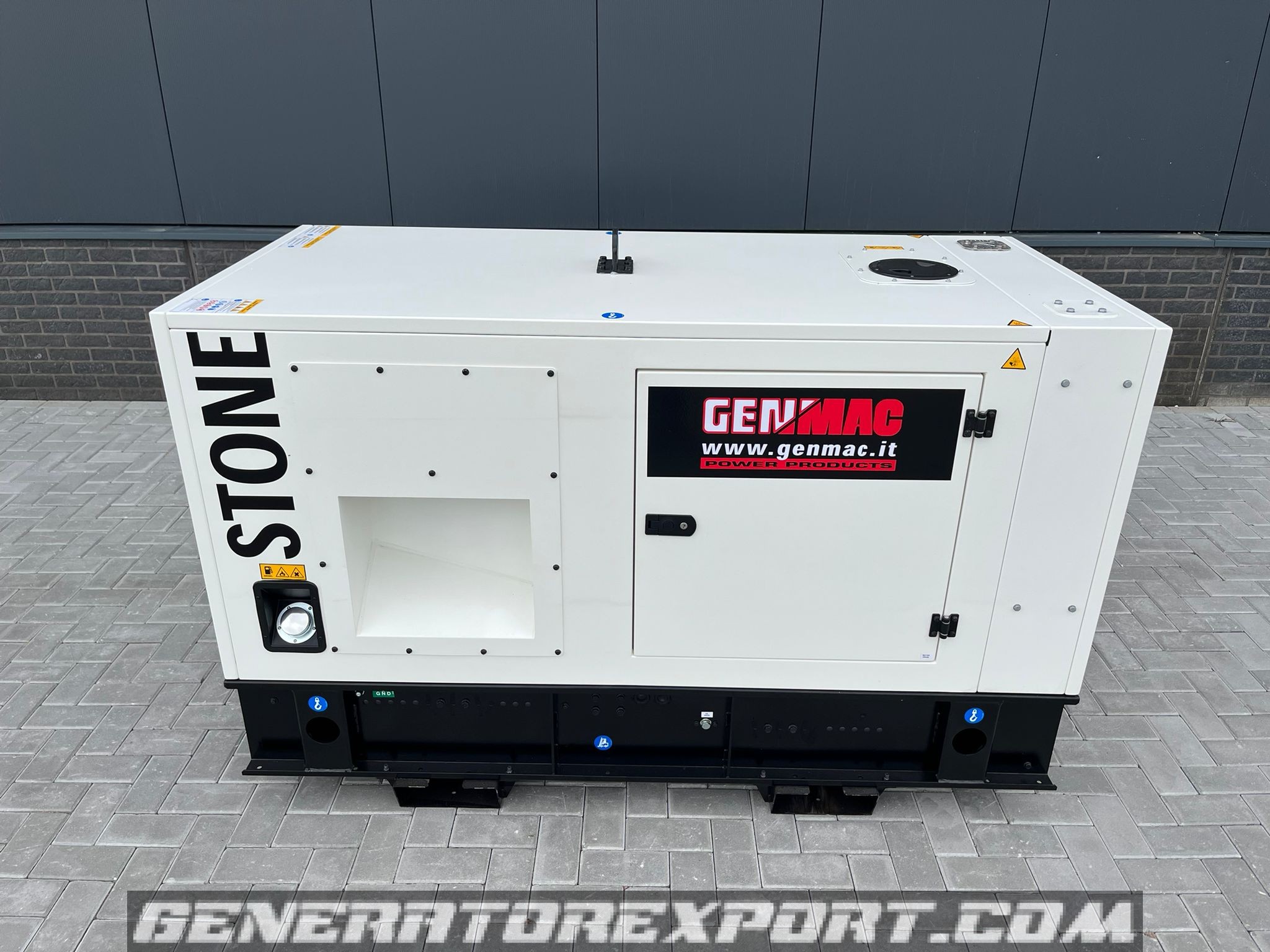

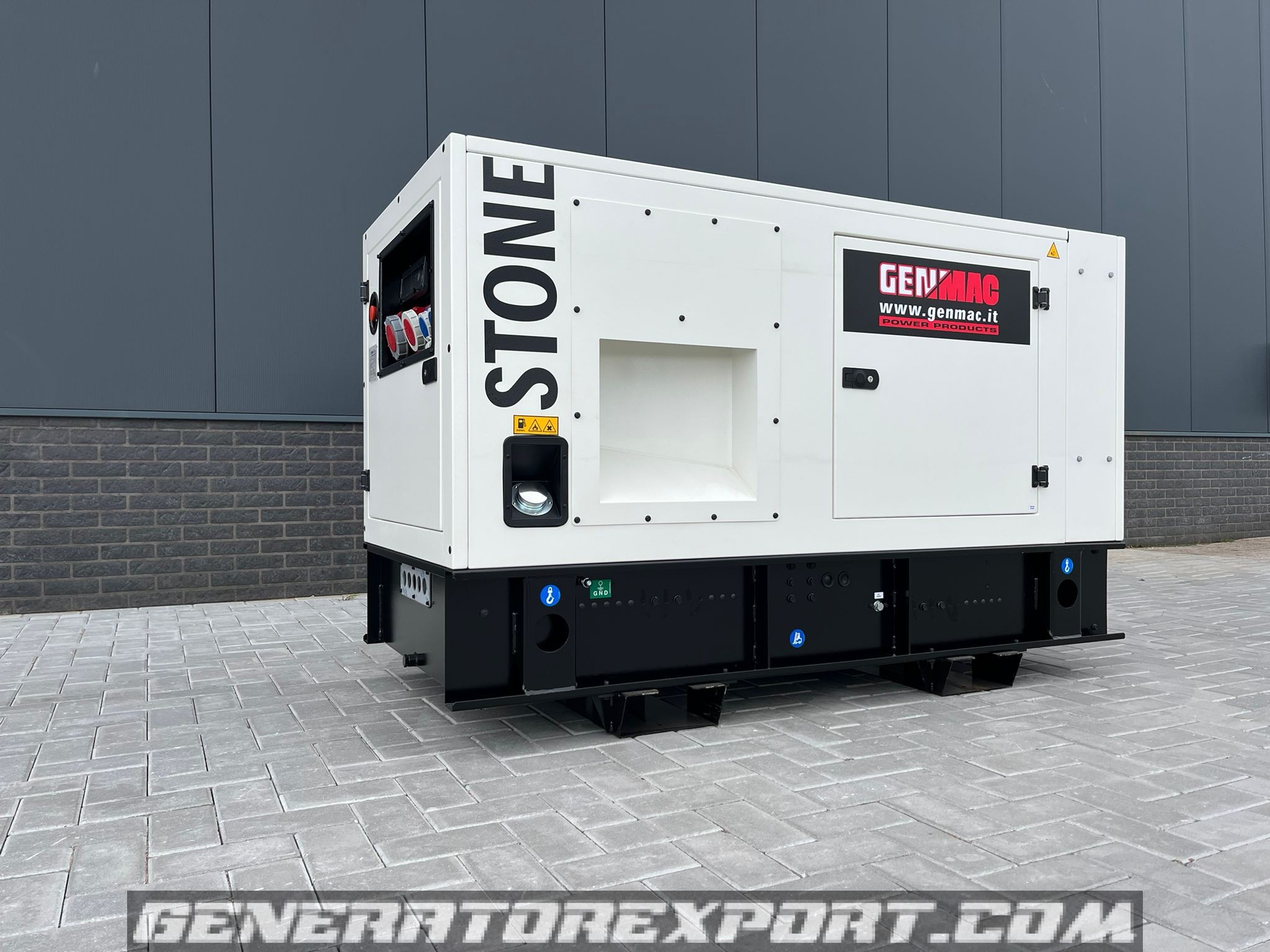

- Canopy:
- No.3 Large doors for easy access for service and maintenance
- Electro-galvanized sheet DC01+ZE25/25 (EN 10152: 2009)
- High precision sheet cutting with nitrogen laser technology to avoid
oxidation - Sandblasting and cataphoresis treatment of intake / exhaust grids
- Weatherproof sealed joints
- Lockable handles in each door
- RAL 9010 “orange peel” specific powder coat paint for outdoor usage
- Rain cap on exhaust outlet
- Coolant refilling specific hatch
- Fuel filler outside enclosure
- Central lifting hook
- Ecological Sound foam: 100% Recyclable, 35mm thickness, fire-proof
- self-extinguishing, class1, fire-reaction compliant washable, mechanically fixed to the frame
- Muffler:
- Supersilent, Residential type, integrated in the canopy
- With aluminum coating

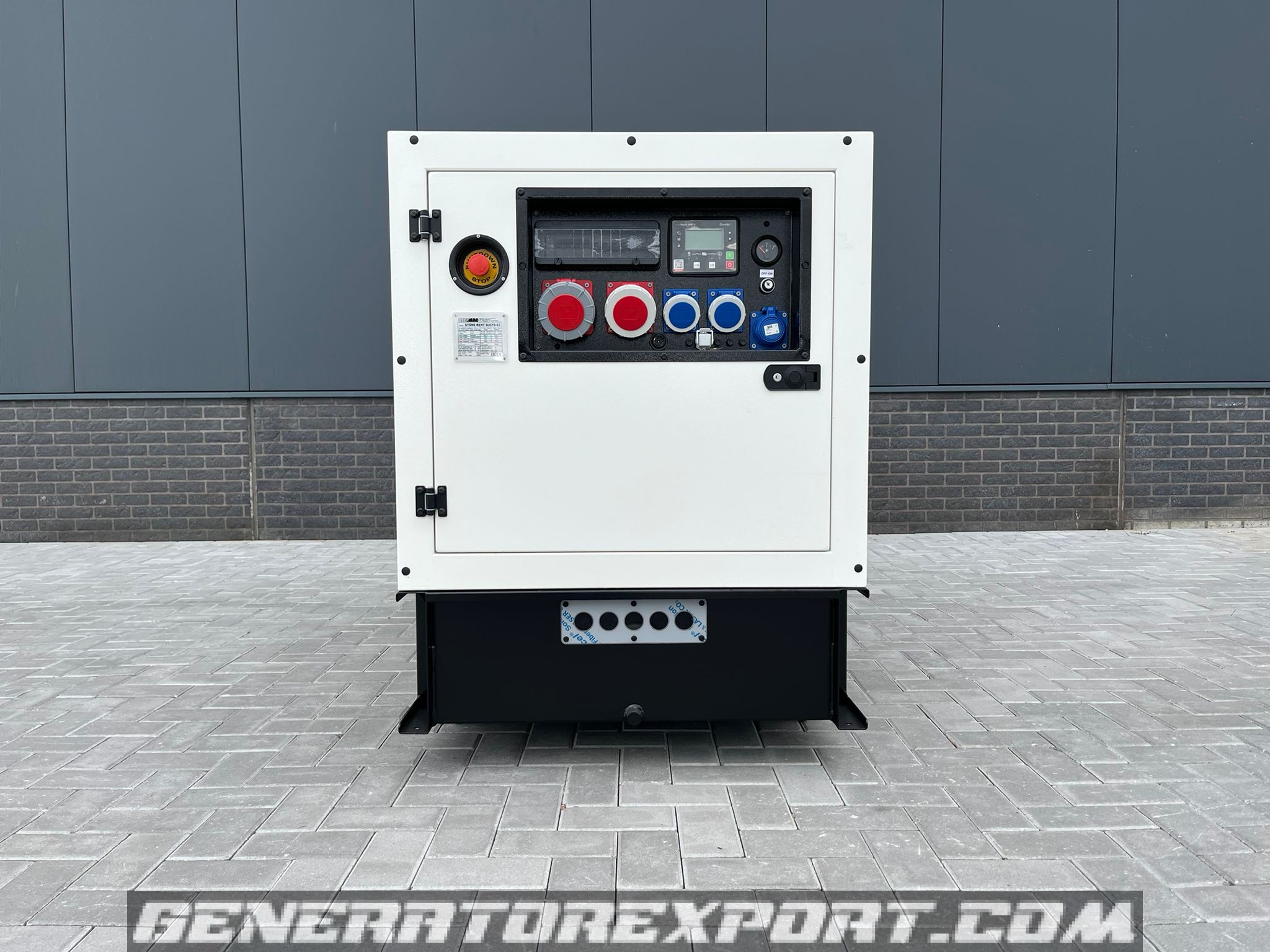

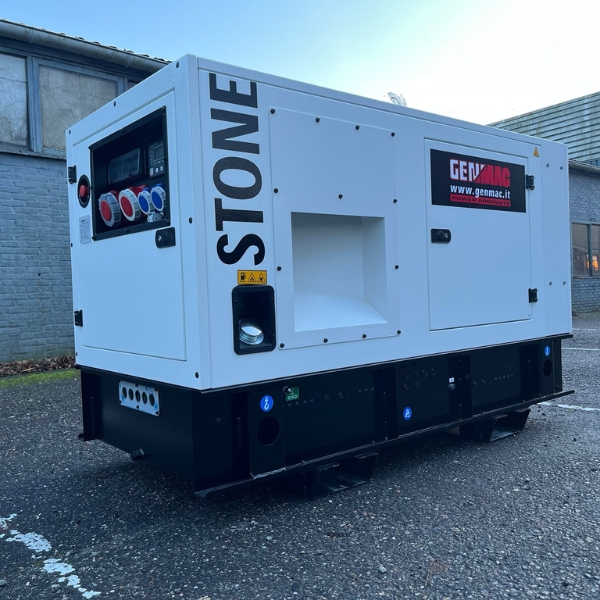

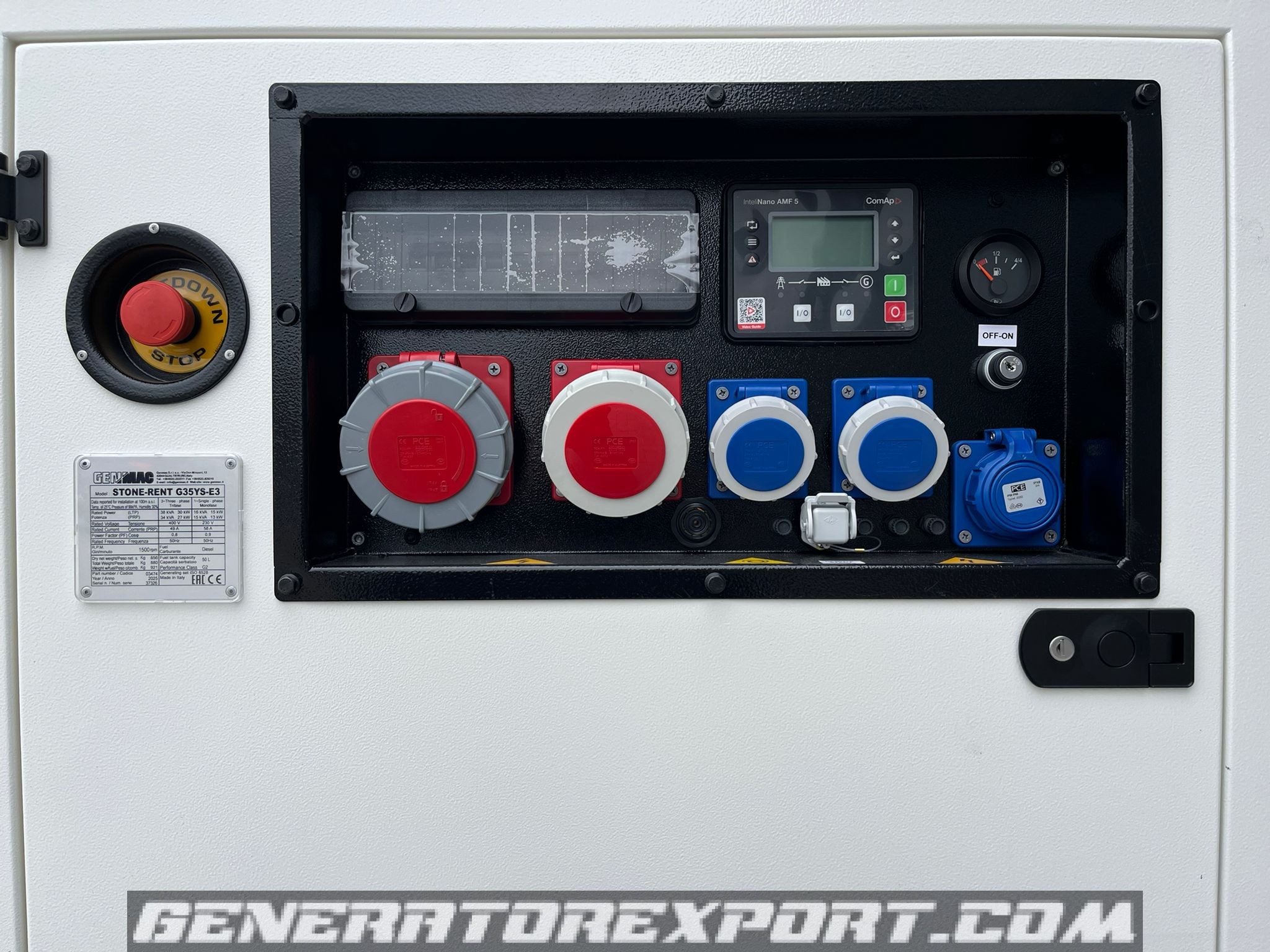

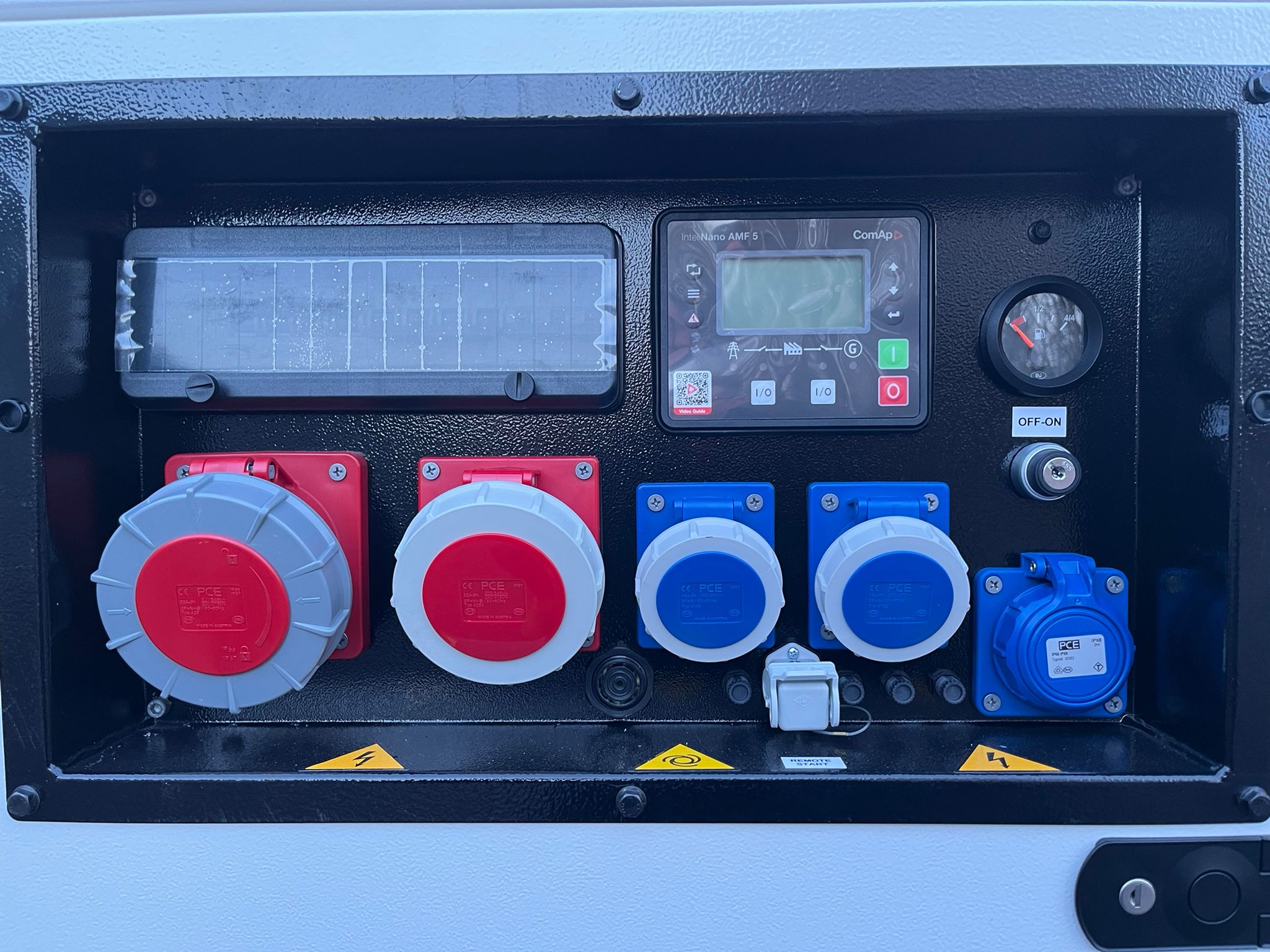

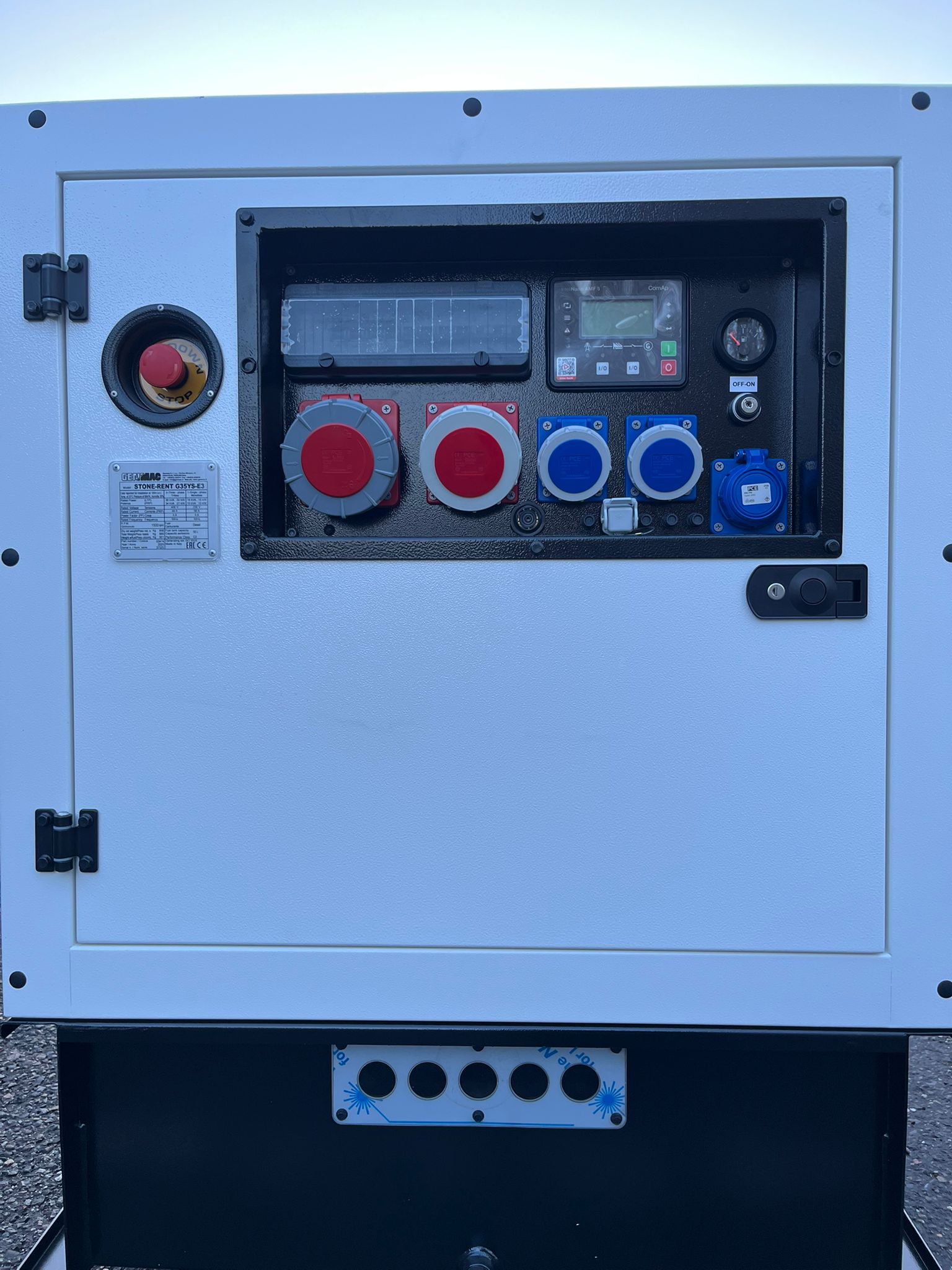

Control Panel: - Metal Control panel with protective back cover
- Dedicated area to make easier the electrical connection to the load
- All units and components are prototype tested, factory build and
production tested. A specific control procedure during the several stages
of production ensures long life and reliability.
